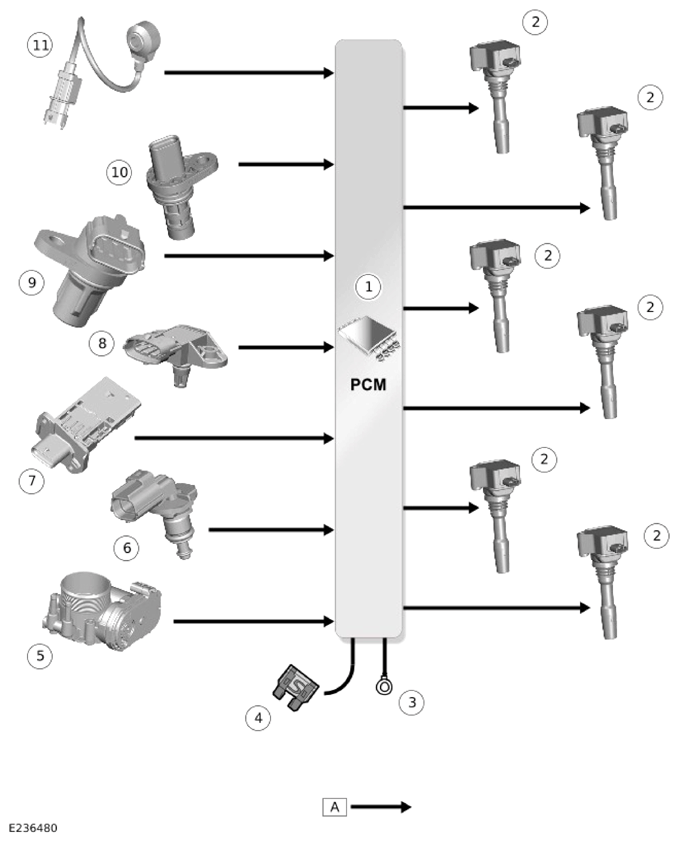

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ignition coil |
| 3 | Ground |
| 4 | Power supply |
| 5 | Electric throttle - Throttle Position Sensor (TPS) |
| 6 | Engine Coolant Temperature (ECT) sensor |
| 7 | Mass Air Flow and Temperature (MAFT) sensor |
| 8 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 9 | Camshaft Position (CMP) sensor (quantity 2) |
| 10 | Crankshaft Position (CKP) sensor |
| 11 | Knock sensor (quantity 3) |
