Right Valve Cover (G2796550): Installation

WARNING: This page is about a different variant/trim than selected.

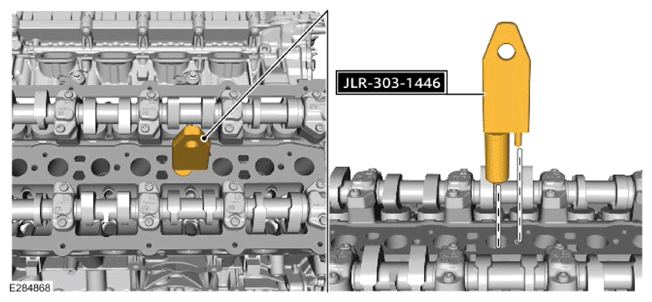

  1. G15322099Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool to the position as illustrated.

    Special Tool(s): 303-1446

  2. G14053085Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new right valve cover gasket.

      Renew Part: Valve cover gasket Quantity: 1  .

    • Install 4 new spark plug boss seals.

      Renew Part: Spark plug boss seals Quantity: 4  .

  3. CAUTION:
    • Use only a plastic scraper when removing the old sealant.
    • Use lint free cloth.
    • Make sure that the mating faces are clean and free of any foreign material.
    • Installation of the valve cover and tightening of the bolts must be completed within 7 minutes of applying the RTV sealant.
    NOTE: The application of the sealant must be 1.5mm diameter 12mm long. Install the valve cover immediately after applying the sealant. The cover should be installed directly to the head without smearing the sealant or the seals.

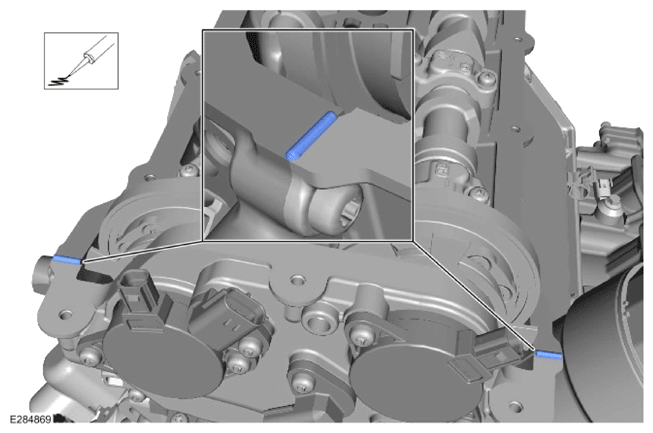

    G15322101Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply 2 steady 1.5 mm diameter bead of RTV sealant to the areas illustrated.

    Refer to: SPECIFICATIONS

  4. CAUTION: Observe due care when installing the component.

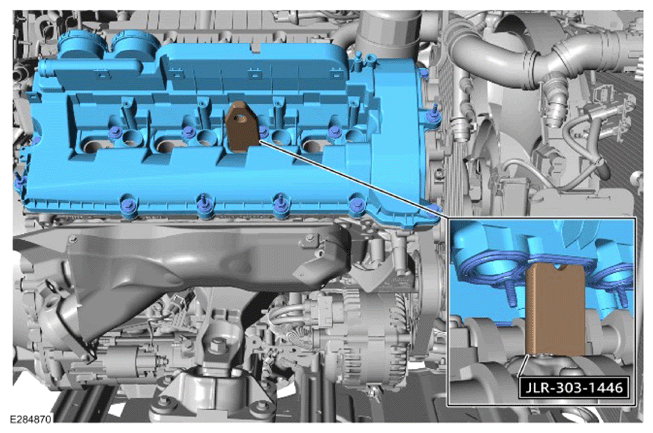

    G15322102Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the right valve cover as illustrated.

    Special Tool(s): 303-1446

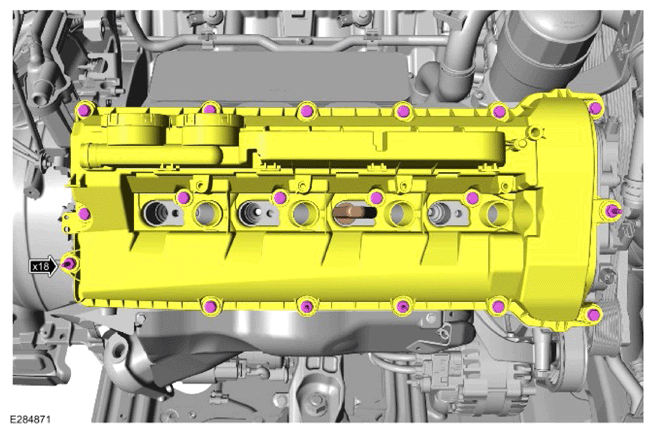

  5. G15322103Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Finger tighten the 18 valve cover bolts.

  6. Remove the special tool.

    Special Tool(s): 303-1446

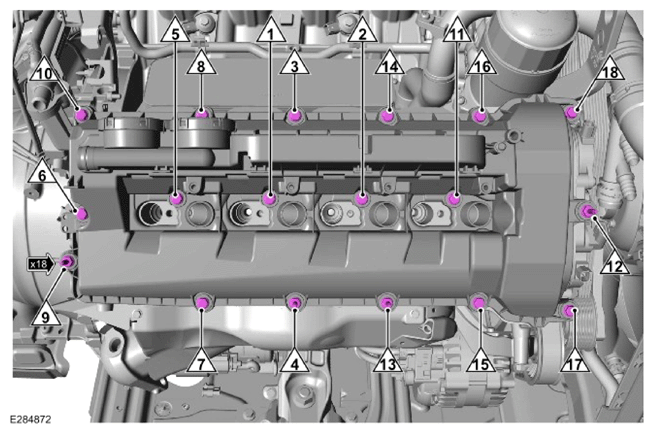

  7. Fig 1: Valve Cover Bolts Tightening Sequence
    G15322104Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 18 valve cover bolts in the sequence illustrated.

    Torque  : 13 Nm

  8. Reposition the ignition coil wiring harness to the original position.
  9. G15322095Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the wiring harness to the original position.
    • Secure the wiring harness clip.
    • Install and tighten the nut.

      Torque  : 6 Nm

  10. G15322094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the wiring harness to the original position.
    • Secure the wiring harness clip.
    • Connect the 4 electrical connectors.
    • Install and tighten the bolt.

      Torque  : 10 Nm

  11. G15322093Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the part load breather pipe.
    • Connect the part load breather pipe connector.
  12. G15322092Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the coolant pipe assembly.
    • Install and tighten the bolt.

      Torque  : 25 Nm

    • Connect the coolant hose connector.
  13. G15322091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the coolant hose to the original position.
    • Connect the coolant hose connector.
  14. G15322090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition and secure the 2 cables to the original position.
    • Secure the 3 clips.
    • Install and tighten the bolt.

      Torque  : 12 Nm

  15. G15322089Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the cable to the jump start terminal.
    • Install and tighten the nut.

      Torque  : 12 Nm

    • Install the cover.
  16. Install the right fuel injectors.

    Refer to: FUEL INJECTORS

  17. Install the right air cleaner outlet pipe.

    Refer to: RIGHT AIR CLEANER OUTLET PIPE

  18. Install the supercharger.

    Refer to: SUPERCHARGER

  19. Connect the 12 V system.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT
