Right Exhaust Manifold (G2796543): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations with components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the Heated Oxygen Sensor (HO2S) electrical connector heatshield.
- Disconnect the electrical connector from the HO2S .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Remove the accessory drive belt idler pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the banjo bolt.
- Disconnect the pipe clamp.
- Remove differential pressure sensor pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the right exhaust manifold heatshield.

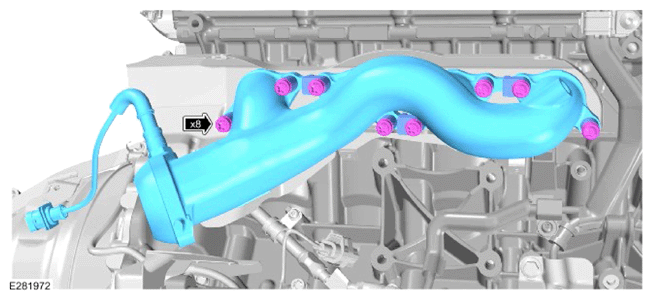

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use the special tool to remove and discard the 8 bolts.
  Special Tool(s): JLR-303-1652
- Remove the 8 spacers.
- Remove the right exhaust manifold.

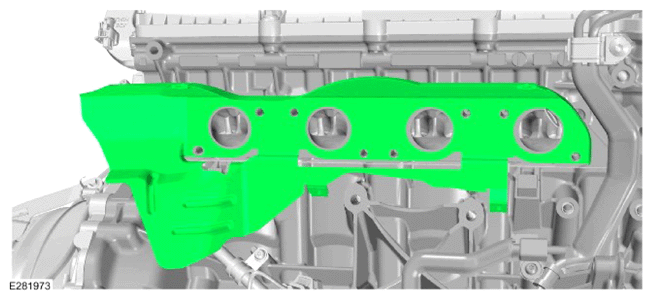

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the right exhaust manifold gasket.
NOTE:
- Do not disassemble further if the component is removed for access only.
- Left side shown, right side similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to remove the HO2S from the exhaust manifold.

Special Tool(s): 310-121
