Oil Cooler (G2796544): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the supercharger.
Refer to: SUPERCHARGER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

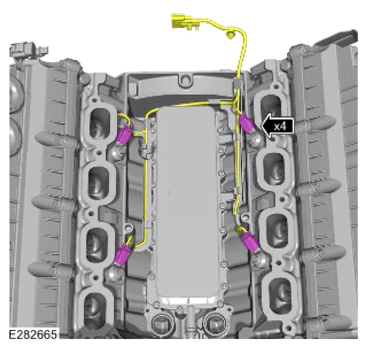

Disconnect the 4 knock sensor wiring harness connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

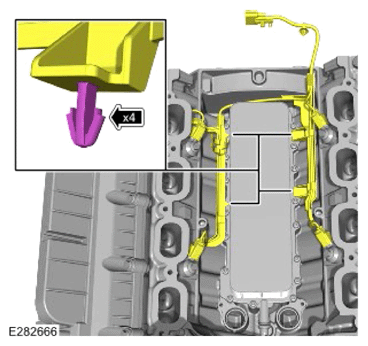

- Release the 4 clips.
- Release the knock sensor wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

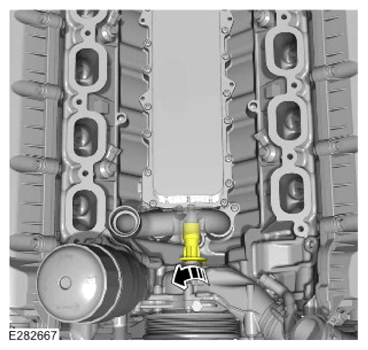

Rotate the oil cooler coolant pipe connector.
CAUTION:
- Be prepared to collect escaping oil.
- Be prepared to collect escaping coolant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

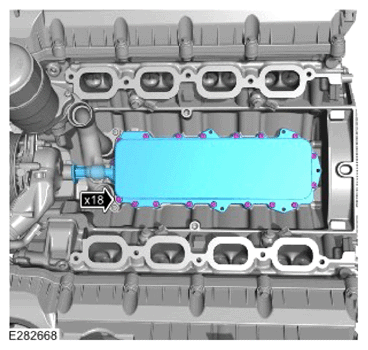

- Remove the 18 oil cooler bolts.
- Remove the oil cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the oil cooler coolant pipe connector.
- Discard the O-ring seals.
