Drive Plate (G2811633): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not insert the bottoming tap more than the depth of the threaded holes (16mm). Apply tape to the bottoming tap 16mm from the end as a visual guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a suitable bottoming tap to clean the threads.
CAUTION: Make sure that the locating pin on the crankshaft is aligned with the guide hole in the drive plate

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the drive plate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install but do not fully tighten the 10 new bolts.

Renew Part: Drive plate bolt(s) Quantity: 10 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1304
Fig 1: Drive Plate Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 10 bolts in the illustrated sequence.

Torque

Stage 1: 45 Nm

Stage 2: 90°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

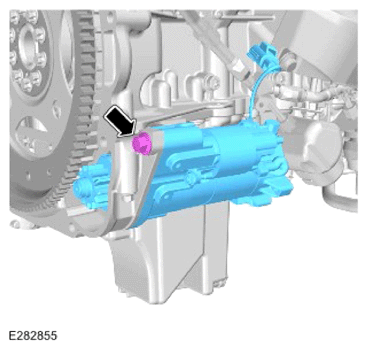

- Install the starter motor as illustrated.
- Install and tighten the starter motor bolt.
  Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the starter motor bracket.
- Install and tighten the 3 bolts.
  Torque : 47 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

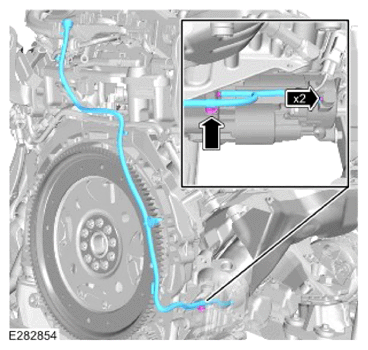

- Install the starter motor cable tie.
- Use a suitable cable tie to secure the starter motor cable tie to the engine.
- Connect the 2 breather pipe connections.
- Secure the breather pipe clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the starter motor negative cable electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the positive cable to the starter motor.
- Install and tighten the nut.
  Torque : 12 Nm
- Reposition the positive cable shield to the original position as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

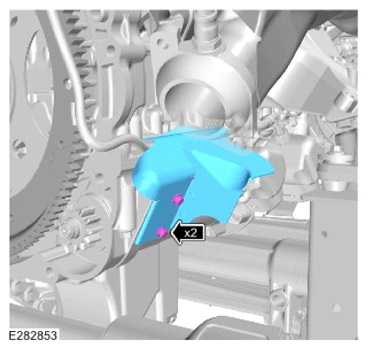

- Install the heatshield to the starter motor.
- Install and tighten the 2 bolts.
  Torque : 6 Nm
Install the transmission.
Refer to: TRANSMISSION - V8 S/C 5.0L PETROL
