Cylinder Numbering
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

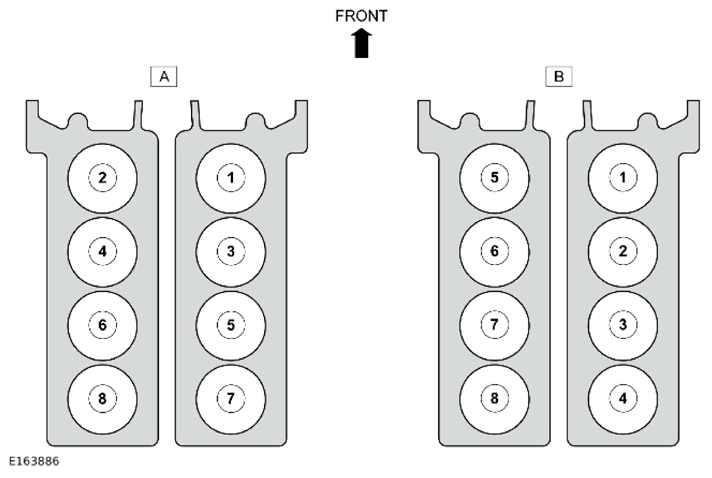

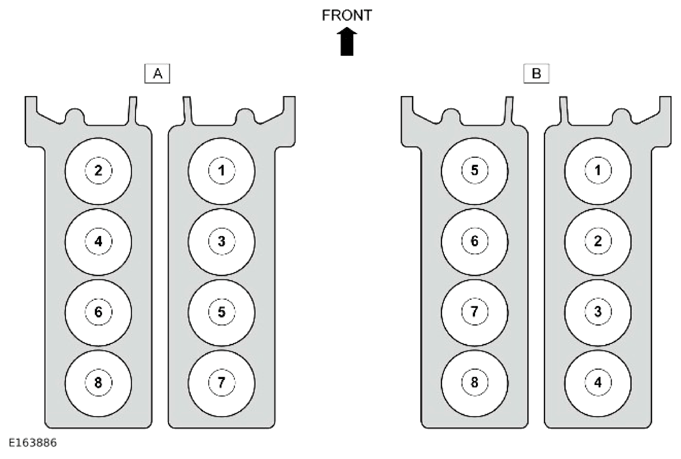

| ITEM |
DESCRIPTION |
| A |
ISO standard cylinder numbering |
| B |
DIN standard cylinder numbering |
The ISO standard cylinder firing order is the following: 1, 2, 7, 3, 4, 5, 6, 8
The DIN standard cylinder firing order is the following: 1, 5, 4, 2, 6, 3, 7, 8
