Starting System - INGENIUM I6 3.0L Petrol: Specifications
WARNING: This page is about a different variant/trim than selected.

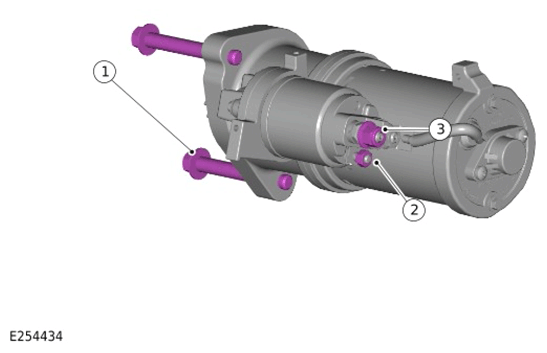

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Starter motor to engine bolts |
48 |
35 |
- |
| 2 |
Starter motor electrical connector nut |
7 |
- |
62 |
| 3 |
Solenoid electrical connector nut |
7 |
- |
62 |
