Starter Motor (G2768462): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

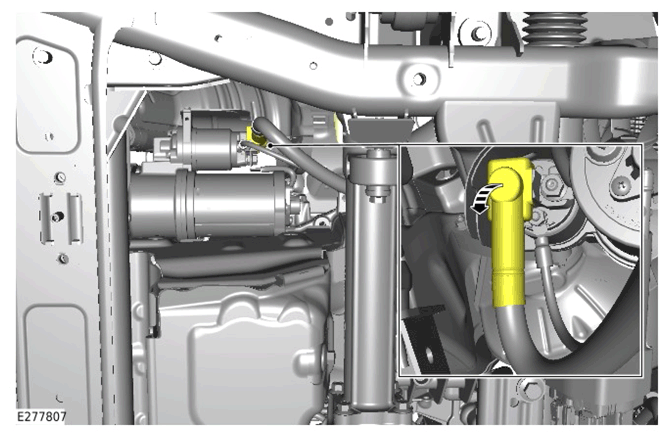

Reposition the startup battery positive cable cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

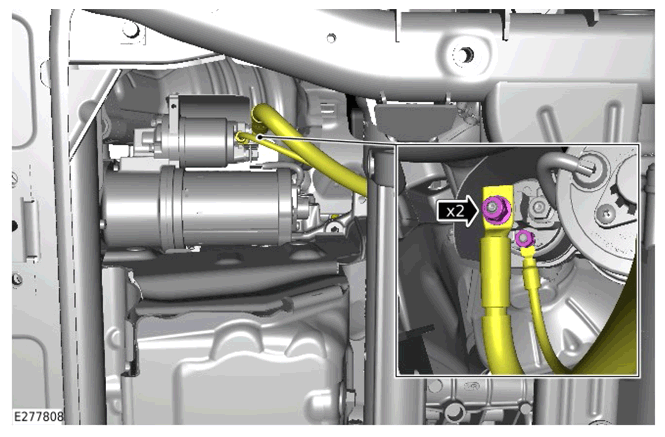

- Remove the 2 nuts.
- Disconnect the 2 wiring harnesses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

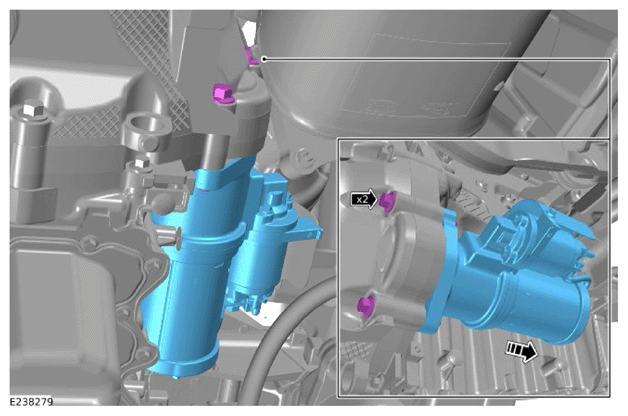

- Remove the 2 bolts.
- Remove the starter motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

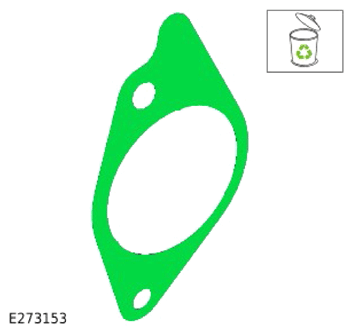

Remove and discard the starter motor gasket.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

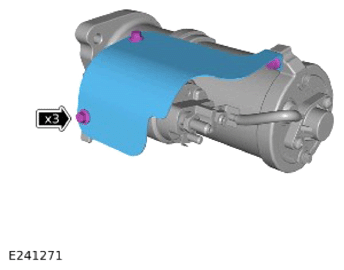

- Remove the 3 bolts.
- Remove the heatshield from the starter motor.
