Belt Integrated Starter Generator
WARNING: This page is about a different variant/trim than selected.

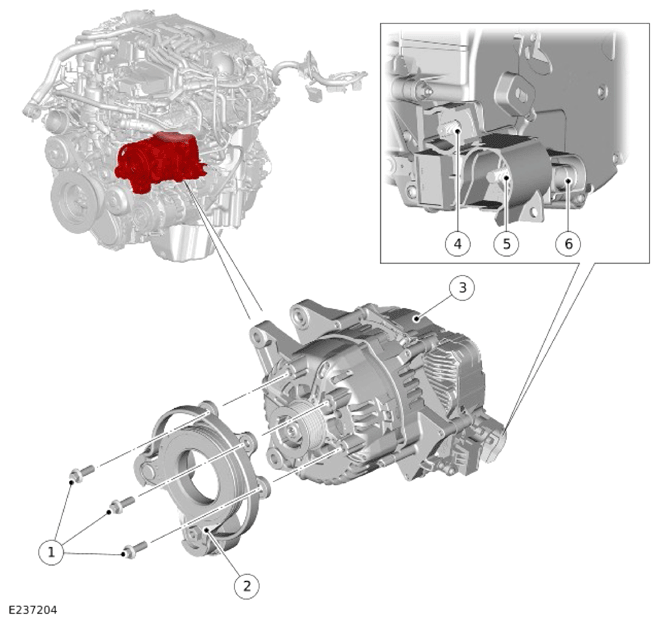

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt |
| 2 | Belt Integrated Starter Generator (BISG) drive belt tensioner |
| 3 | Belt Integrated Starter Generator (BISG) |
| 4 | Negative connection |
| 5 | Positive connection |
| 6 | Engine wiring harness connection |
The Belt Integrated Starter Generator (BISG) is part of the accessory drive system and used as a starter motor. The BISG is used to provide a virtually silent engine restart.
