Exhaust System - INGENIUM I6 3.0L Petrol (G2344375): Specifications

NOTE: Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

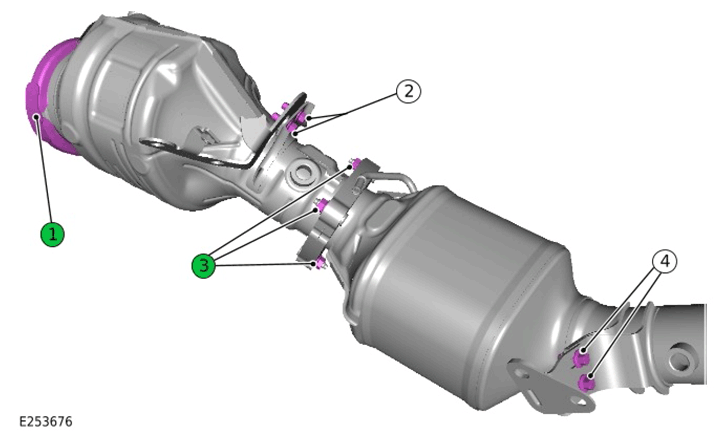

ITEM	DESCRIPTION	NM	LB-FT
1	Catalytic converter to turbocharger clamp	18	13.3
2	Catalytic converter to transmission mounting bracket bolts	25	18.4
3	Gasoline Particulate Filter (GPF)to catalytic converter nuts	25	18.4
4	GPF  to transmission mounting bracket bolts	25	18.4

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

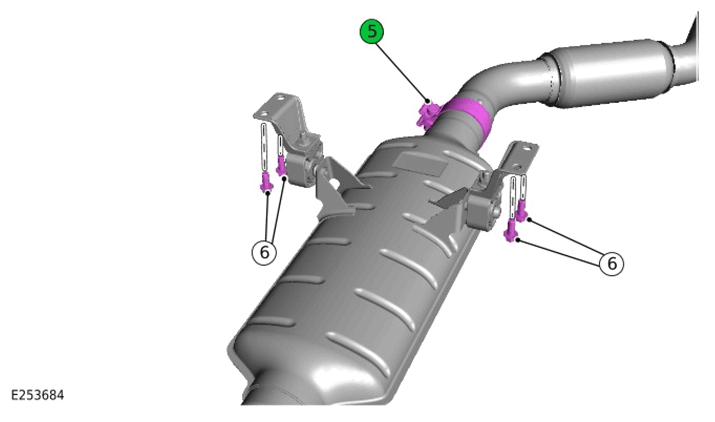

ITEM	DESCRIPTION	NM	LB-FT
5	Center exhaust system clamp	55	40.6
6	Center exhaust hanger bracket bolts	27.5	20

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

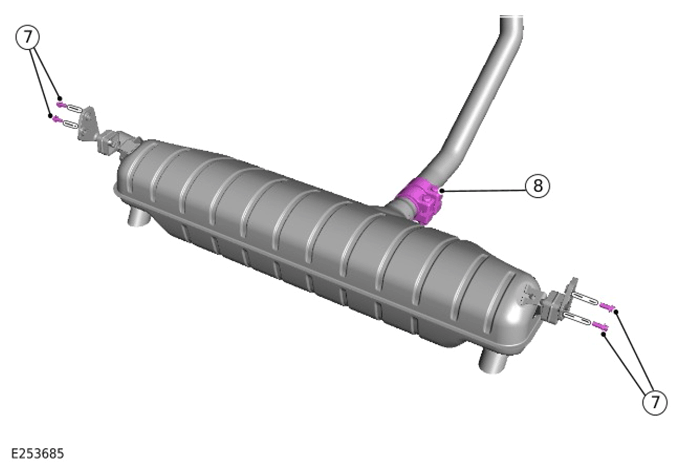

ITEM	DESCRIPTION	NM	LB-FT
7	Rear silencer hanger bracket bolts	27.5	20
8	Rear silencer service clamp	30	22.1
