Rear Silencer (G2409712): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Observe due care when working near a hot exhaust system.
CAUTION:
Make sure the exhaust system is supported at all times.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
-
WARNING: This step requires the aid of another technician.

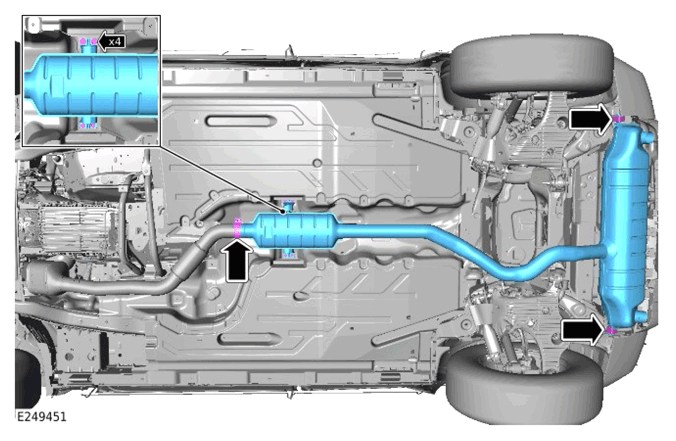

- Remove and discard the exhaust clamp.
- Remove the 4 exhaust hanger mounting bracket bolts.
- Release the rear silencer from the 2 exhaust hanger bracket mounting rubbers.
- Remove the rear exhaust section.
-
NOTE: Do not disassemble further if the component is removed for access only.

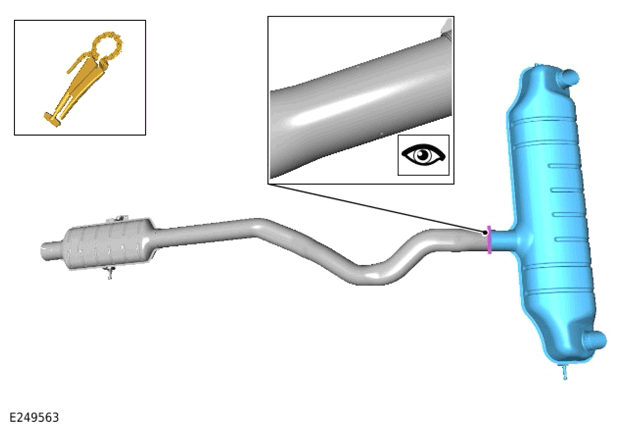

- Use a suitable tool to cut and remove the rear silencer in the marked position as illustrated.
