Catalytic Converter (G2344555): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the right air filter housing.
Refer to: AIR FILTER HOUSING
Remove the right air filter outlet pipe.
Refer to: AIR FILTER OUTLET PIPE
Remove the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Remove the starter motor.
Refer to: STARTER MOTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 clips.
- Remove the pipe assembly.
- Release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the wiring harness from the 2 clips.
CAUTION: If accidentally dropped or knocked install a new sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to remove the mid catalyst heated oxygen sensor.

Special Tool(s): JLR-309-004

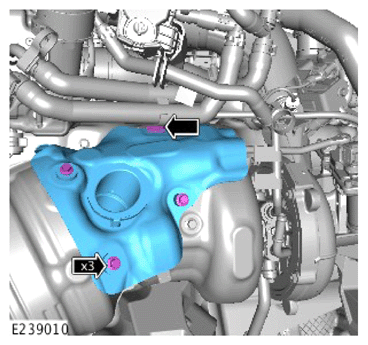

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Release the heatshield from the bracket.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 fasteners.
- Release and reposition the noise, vibration and harshness material as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the wiring harness from the clip.

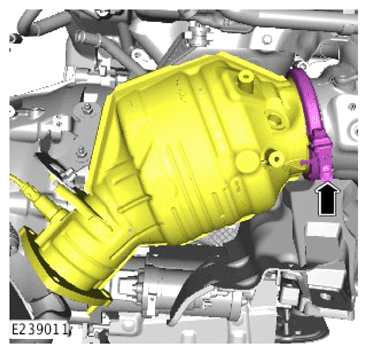

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the clamp.

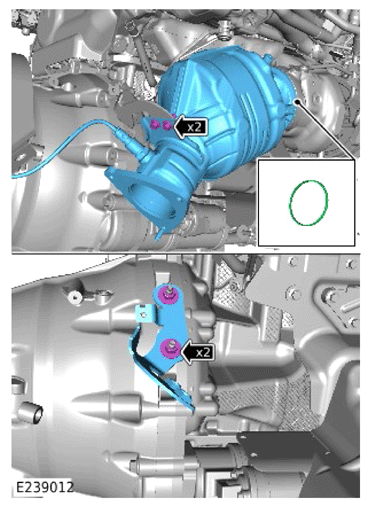

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts and release the catalytic converter.
- Remove the 2 bolts and remove the bracket.
- Remove the catalytic converter.
- Remove and discard the gasket.
CAUTION: If accidentally dropped or knocked install a new sensor.

NOTE: Do not disassemble further if the component is removed for access only.

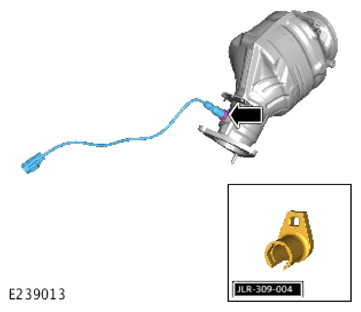

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use the special tool to remove the mid catalyst heated oxygen sensor.
  Special Tool(s): JLR-309-004
