Exhaust Rear Section
WARNING: This page is about a different variant/trim than selected.
NOTE:
Vehicle with 5 doors is shown. Vehicle with 3 doors is similar.

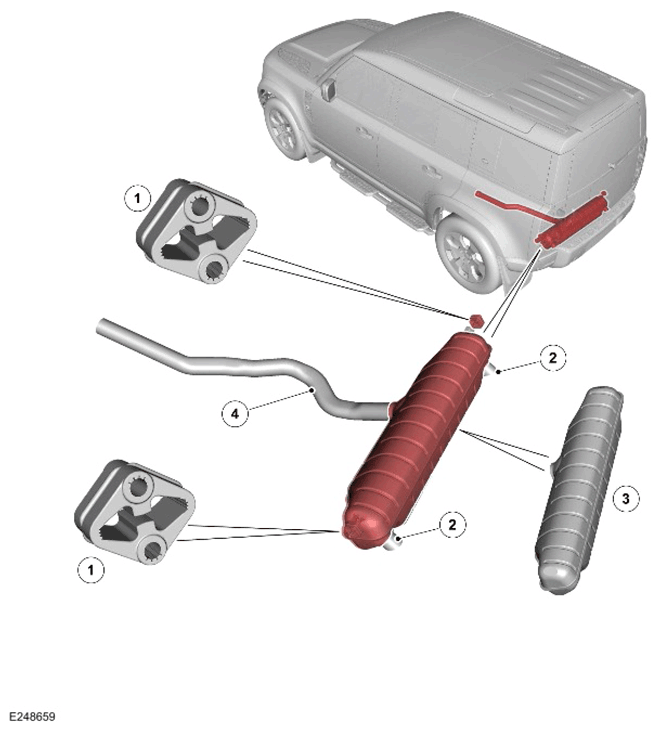

| ITEM | DESCRIPTION |
|---|---|
| 1 | Mounting rubber (quantity 2) |
| 2 | Exhaust pipe (quantity 2) |
| 3 | Rear silencer |
| 4 | Inlet pipe |
The rear exhaust section has 1 silencer assembly with 1 inlet and 2 outlet pipes welded to the silencer. The exhaust gases are expelled from rear silencer through 2 outlet pipe. The outlet pipe direct exhaust gases away from the rear of the vehicle.
The rear exhaust section is supported by 2 mounting rubbers. The mounting rubbers are attached to 2 hanger brackets bolted to the underside of the vehicle body.
In production, the resonator and the rear silencer are installed as one component. In service, the rear silencer can be replaced independently.
