Exhaust Center Section
WARNING: This page is about a different variant/trim than selected.
NOTE:
Vehicle with 5 doors is shown. Vehicle with 3 doors is similar.

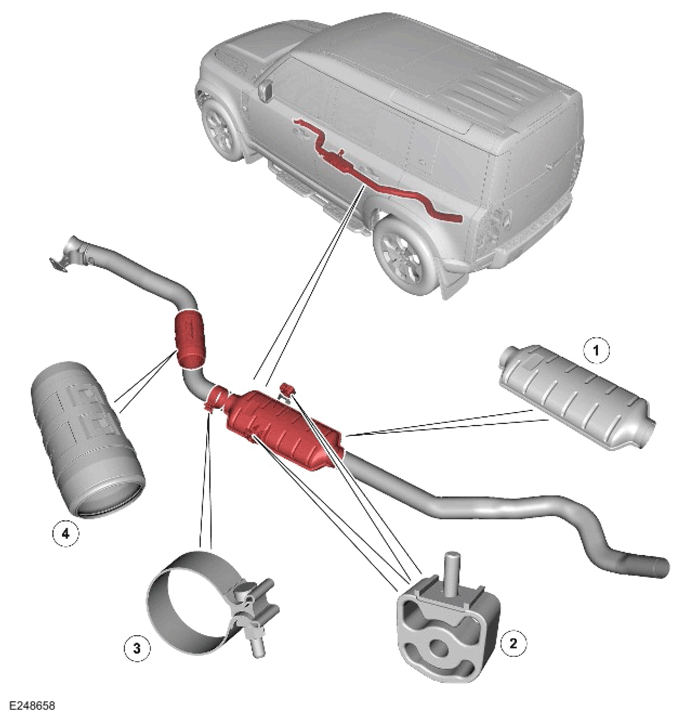

| ITEM | DESCRIPTION |
|---|---|
| 1 | Resonator |
| 2 | Mounting rubber (quantity 2) |
| 3 | Clamp |
| 4 | Flexible coupling |
The exhaust center section comprises of 1 inlet and 1 outlet pipe, which incorporate a flexible coupling and a resonator.
The inlet pipe of the exhaust center section is secured to the exhaust front section outlet pipe by welding.
The exhaust center section is attached to the underside of the body with 2 mounting rubbers. The mounting rubbers attach to hanger brackets that are welded to the system. The mounting rubbers locate on corresponding hanger brackets which are bolted to the underside of the vehicle body.
