Component Location - 1 Of 1
WARNING: This page is about a different variant/trim than selected.
NOTE:
Vehicle with 5 doors is shown, Vehicle with 3 doors is similar.

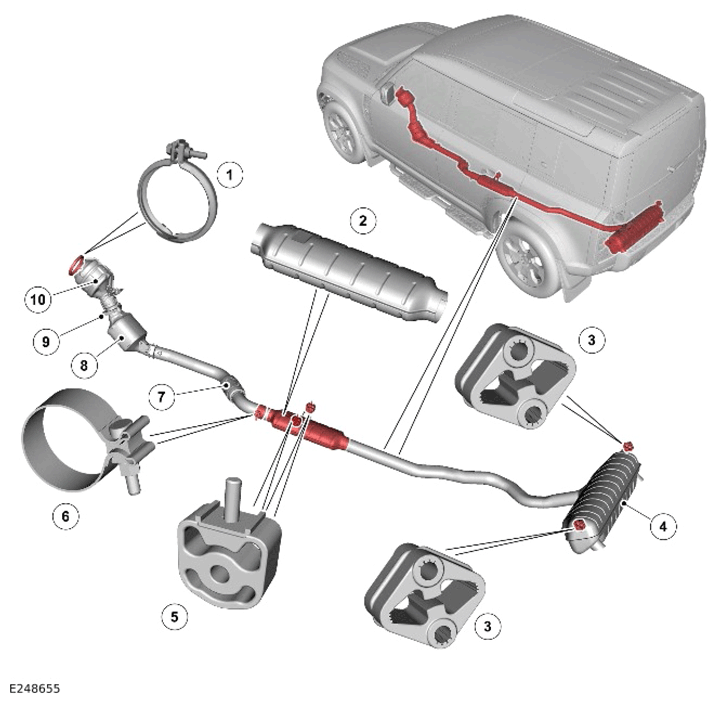

| ITEM | DESCRIPTION |
|---|---|
| 1 | Ring flange to turbocharger |
| 2 | Resonator |
| 3 | Mounting rubber (quantity 2) |
| 4 | Rear silencer |
| 5 | Mounting rubber (quantity 2) |
| 6 | Clamp |
| 7 | Flexible coupling |
| 8 | Main catalytic converter or Main catalytic converter/Gasoline Particulate Filter (GPF) |
| 9 | Flange joint |
| 10 | Pre catalytic converter |
