PHEV Battery (G2769713): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Only complete this step if previously removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

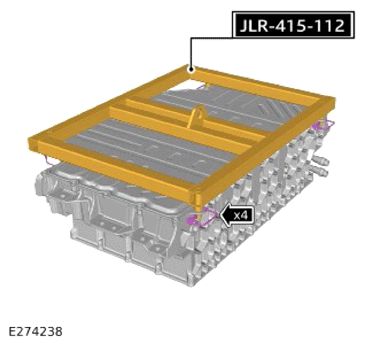

- Install the special tool JLR-415-112 on the PHEV battery.
  Special Tool(s): JLR-415-112
CAUTION:
- This step requires the aid of another technician.
- Take extra care not to damage the surrounding components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

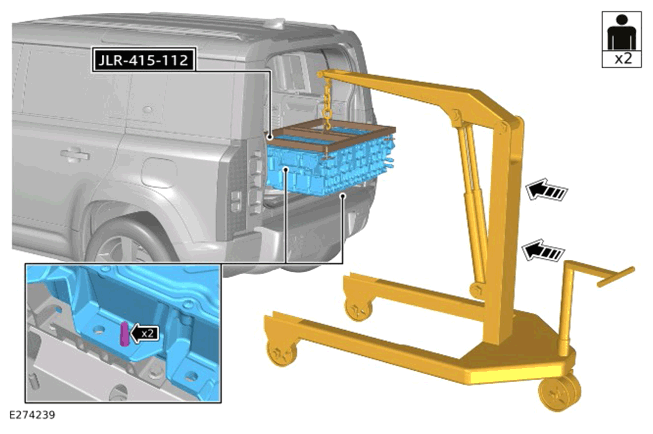

- With assistance, install the PHEV battery.
  General Equipment: Hydraulic jib crane
- Remove the special tool JLR-415-112 from the PHEV battery.
  Special Tool(s): JLR-415-112
- Install and tighten the 6 PHEV battery bolts.
  Torque : 48 Nm
- Reposition the ground cable in the correct location.
- Install and tighten the ground cable bolt.
  Torque : 24 Nm
- Reposition the 2 coolant hoses in the correct location.
- Install the 2 coolant hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

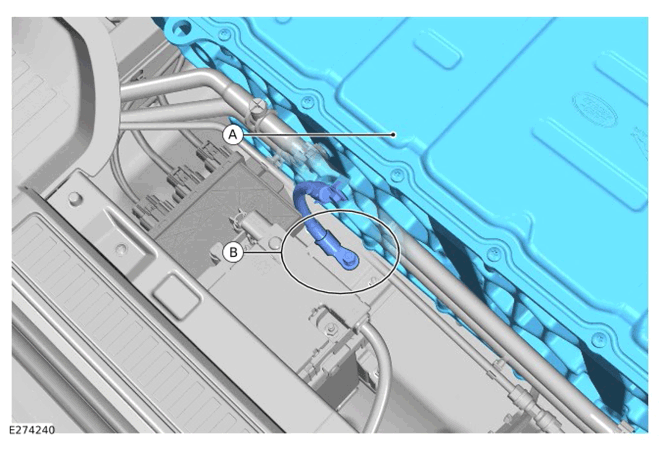

- Use the Jaguar Land Rover approved diagnostic equipment to perform the EV system bonding test.
- A) Connect the probe to the casing of the PHEV battery.
- B) Connect the probe to the ground point.
- The bonding test can only be passed if a reading of under 50 milliohms is achieved. Any measurement above this must be investigated.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Reposition the HV cable and antenna assembly in the correct location.
- Install and tighten the 2 bolts.
  Torque : 9 Nm
Reposition the second row seat backrests.
Fill the PHEV battery cooling system.
Refer to: PHEV BATTERY COOLING SYSTEM DRAINING AND VACUUM FILLING
WARNING: Jaguar Land Rover (JLR) EVAP trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Up the HV system. Only technicians qualified to EVAP level or higher are allowed to complete this step of the procedure.

Refer to: PHEV POWER DOWN/UP - HANDHELD
