Inverter (G2769924): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
It is the responsibility of the Electric Vehicle Authorised Person (EVAP) to make sure they comply with any local legislation for work on High Voltage (HV)
The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.
Be prepared to collect escaping coolant.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Make sure all the HV connectors, ground points and locating points are clean and free from foreign material before disconnecting and connecting.

NOTE:

Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.
Refer to: ELECTRIC VEHICLE SAFETY RULES (G2324544) .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Before handling any HV connectors the person(s) completing this procedure must refer to the 'High Voltage Electrical Connector Operation and Inspection' document.
Refer to: the appropriate service information
WARNING: Jaguar Land Rover (JLR) EVAP trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the HV system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: PHEV POWER DOWN/UP - HANDHELD
WARNING: JLR Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the HV system. Only technicians qualified to EVCP level or higher are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES (G2324544) .
Drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

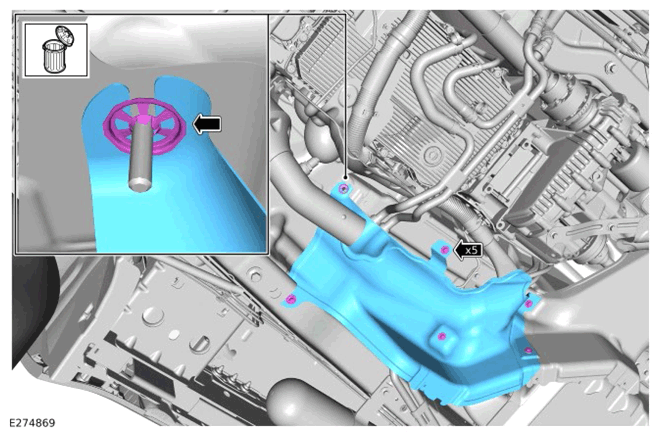

- Remove and discard the push on steel clip.
- Remove the 5 bolts.
- Remove the front exhaust tunnel heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

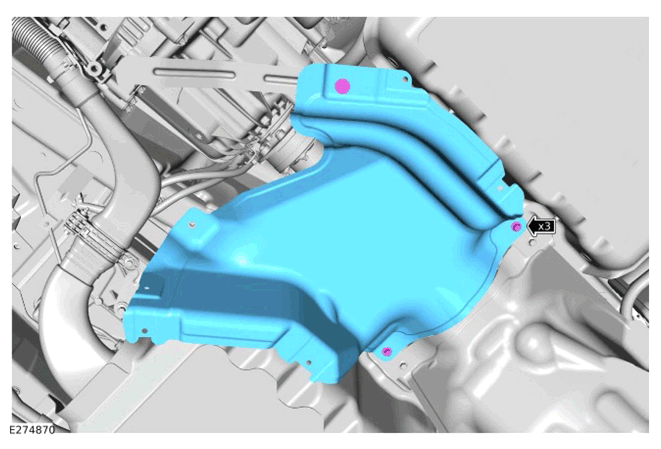

- Remove the 3 bolts.
- Remove the center exhaust tunnel heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

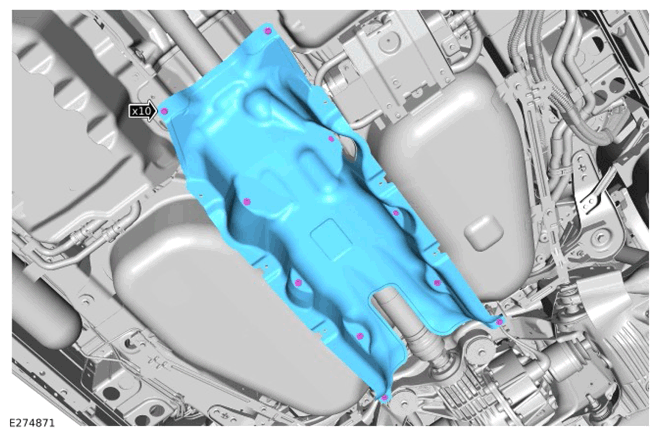

- Remove the 10 bolts.
- Remove the rear exhaust tunnel heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

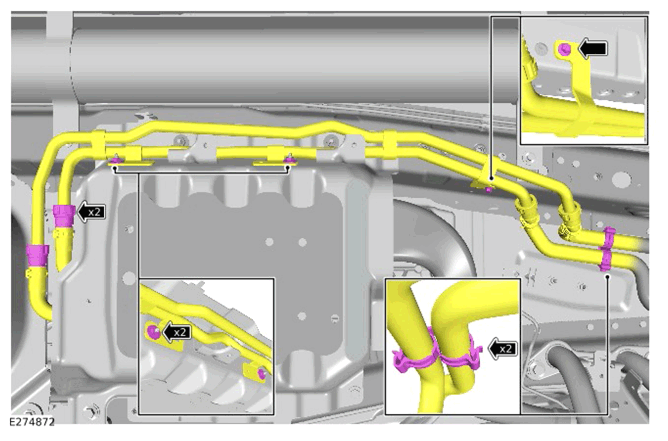

- Remove the 2 nuts.
- Remove the bolt.
- Release the 2 clips.
- Disconnect the 2 coolant hoses.
- Reposition the 2 coolant pipes away from the inverter lower shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

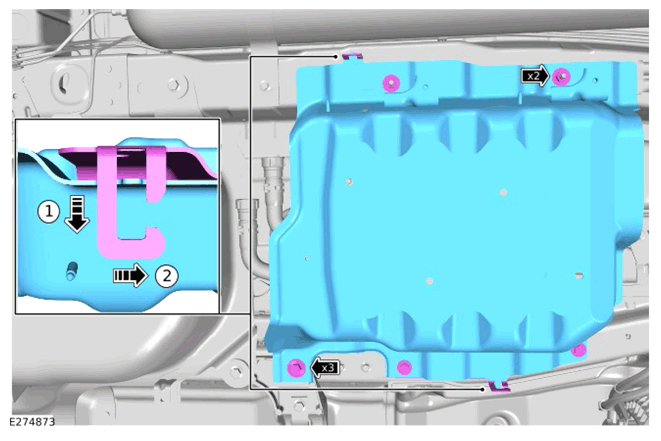

- Remove the 2 nuts.
- Remove the 3 bolts.
- Remove the inverter lower shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

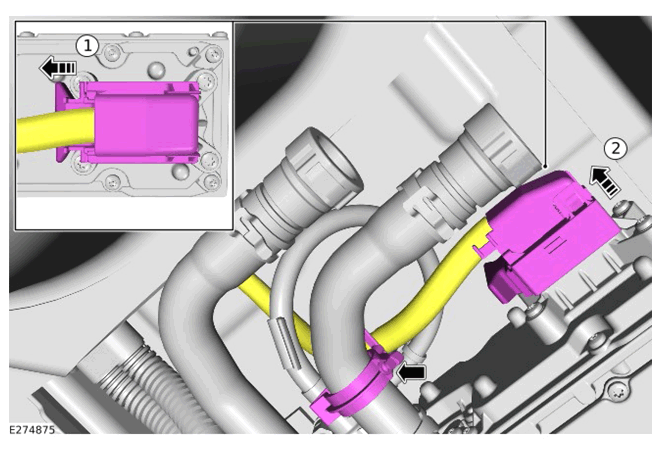

- Release the wiring harness clip.
- Disconnect the inverter electrical connector.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

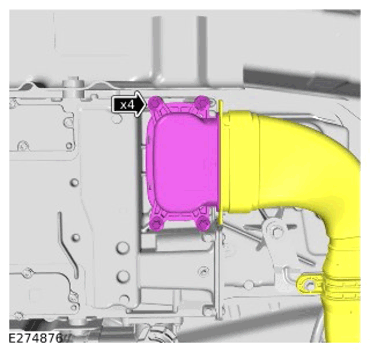

- Remove the 4 bolts.
- Disconnect the 3-phase HV cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

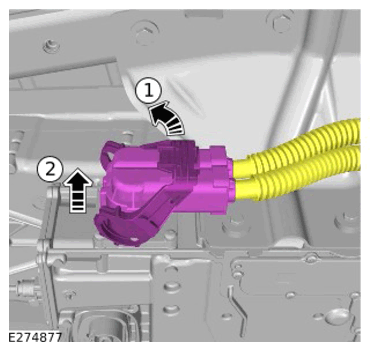

Disconnect the HV inverter cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

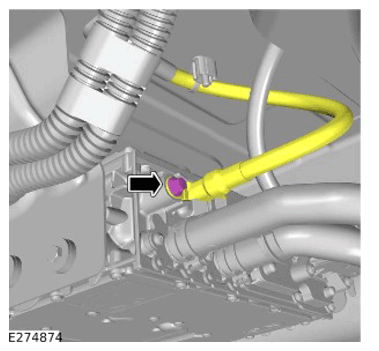

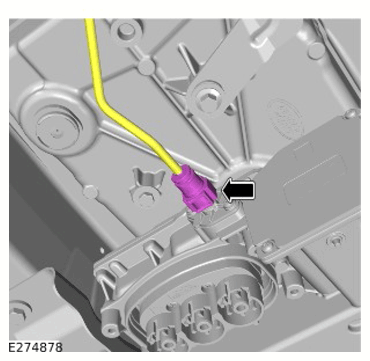

Disconnect the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the ground cable bolt.
- Reposition the ground cable away from the inverter.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

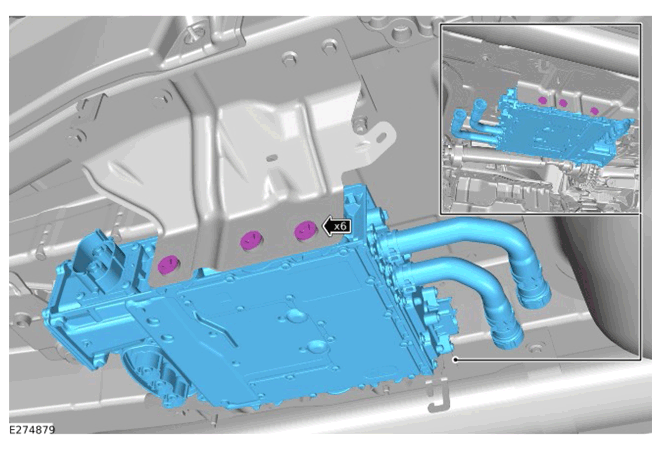

- Remove the 6 bolts.
- With assistance, remove the inverter.
NOTE: Do not disassemble further, if the component has been removed for access only

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

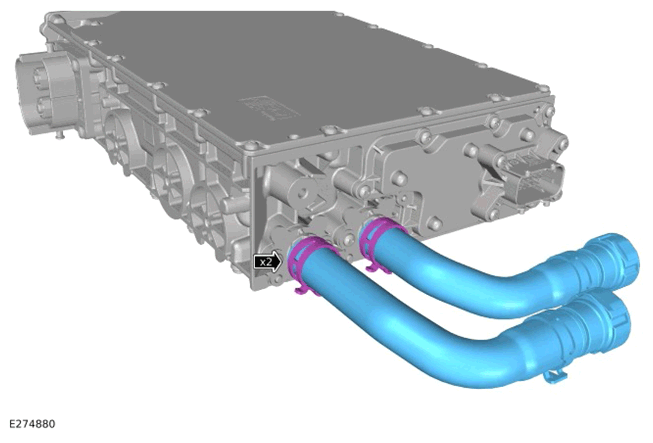

Disconnect the 2 coolant hoses.
