Charging Socket Plug Lock (G2781482): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

It is the responsibility of the Electric Vehicle Authorised Person (EVAP) to make sure they comply with any local legislation for work on High Voltage (HV)
The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.

CAUTION:

Make sure all the HV connectors, ground points and locating points are clean and free from foreign material before disconnecting and connecting.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.
Refer to: ELECTRIC VEHICLE SAFETY RULES (G2324544) .

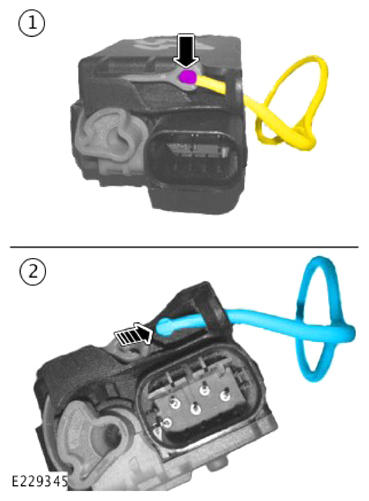

Before handling any HV connectors the person(s) doing this procedure must refer to the HV electrical connector operation and inspection document.
Refer to: the appropriate service information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage HV system. Only technicians qualified to EVAP or higher are allowed to do this procedure.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the charging socket flap.
Refer to: CHARGING SOCKET FLAP
Remove the diagnostic module tank leakage pump.
Refer to: DIAGNOSTIC MODULE TANK LEAKAGE PUMP - INGENIUM I4 2.0L PETROL - PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

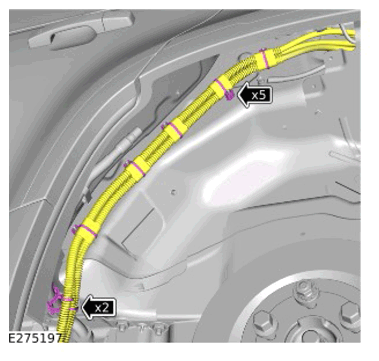

Release the 7 HV wiring harness clips.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

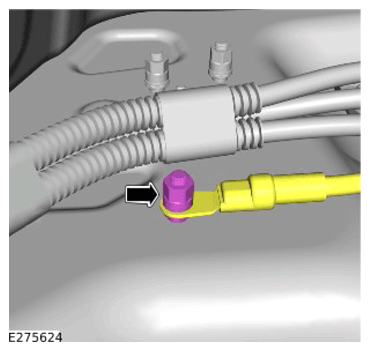

- Remove the ground cable nut.
- Release the ground cable.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

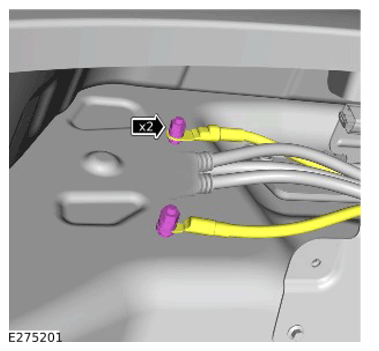

- Remove the 2 ground cable nuts.
- Release the 2 ground cables.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

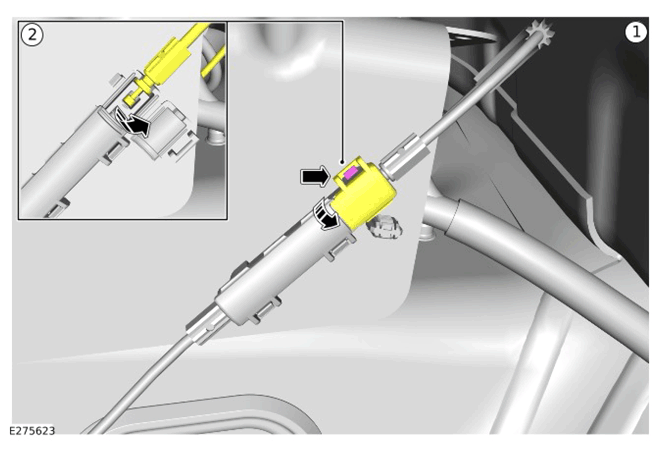

- Open the cover.
- Release the emergency release cable.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

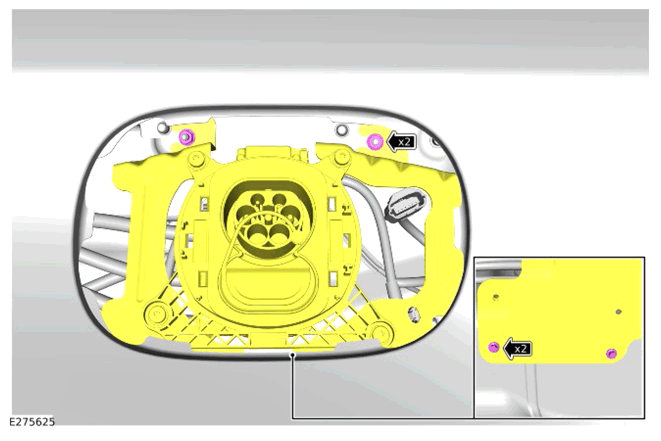

- Remove the 2 nuts.
- Remove the 2 bolts.
- Reposition the charging socket assembly to get access to the charging socket plug lock.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

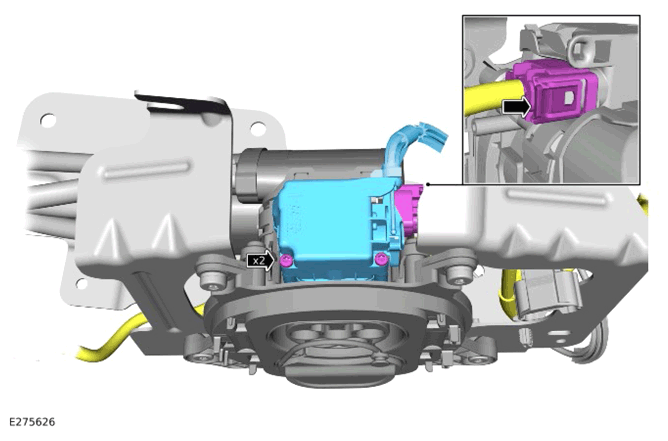

- Disconnect the electrical connector.
- Remove the 2 bolts.
- Remove the charging socket plug lock.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the charging socket plug lock release cable.
- Remove the charging socket plug lock release cable as illustrated.
