Auxiliary Battery (G2806382): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Open the tailgate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the 4 D-loop anchor points.
- Remove the loadspace floor trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

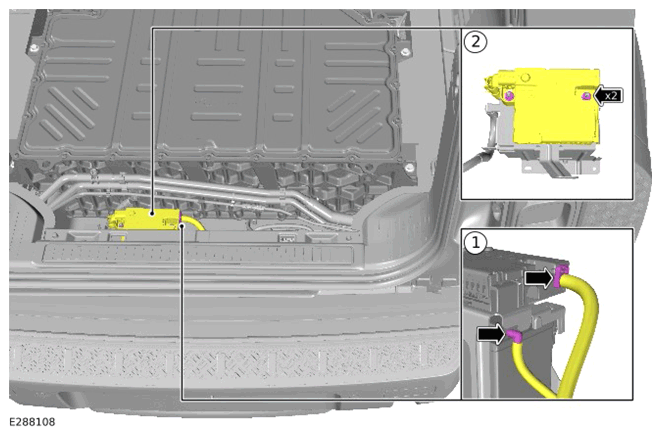

- Disconnect the electrical connector.
- Release the vent hose.
- Remove the 2 nuts.
- Release the auxiliary junction box.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

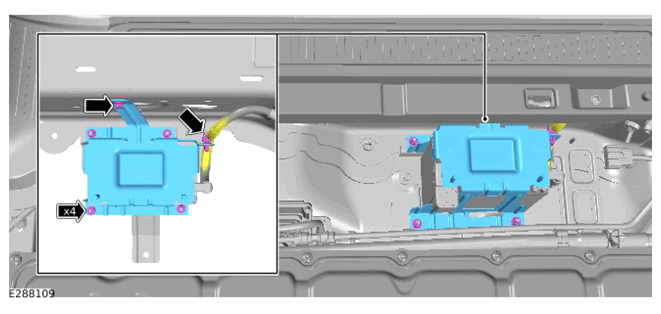

- Release the clip.
- Remove the bolt.
- Remove the 4 nuts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

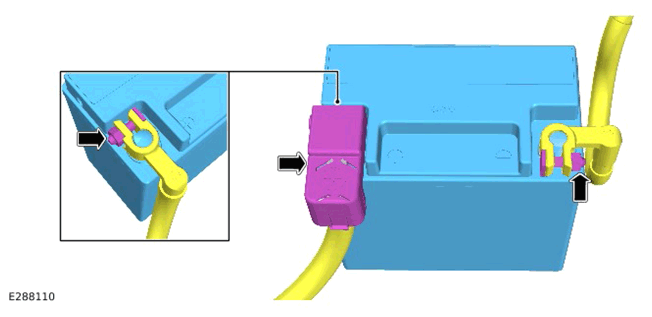

- Disconnect the auxiliary battery ground cable.
- Remove the positive terminal cover on the auxiliary battery.
- Disconnect the auxiliary battery positive cable.
- Remove the auxiliary battery.
