PHEV Power Down/Up - Complete Vehicle - Pathfinder (G2798213): REPOWER

WARNING: This page is about a different variant/trim than selected.

The EVAP must make sure any EVCP and members of the working party have been informed that no further work can be performed on the vehicle. The EVCP must sign the clearance section of the PTW before handing the vehicle responsibility to the EVAP .
All steps showing the Safety Accompanying Person icon require an EVCP within the vicinity of the power down procedure. This person must have access to the safety hook at all times.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

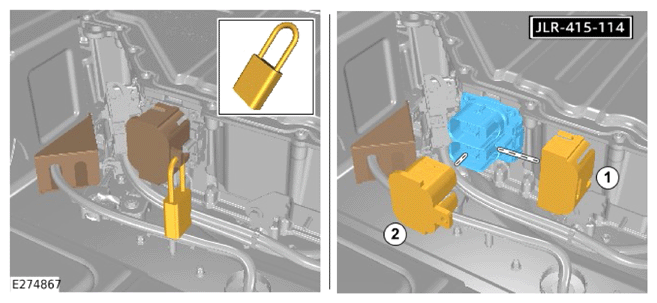

- Remove the insulated padlock.
- Remove the special tool from the HV battery connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

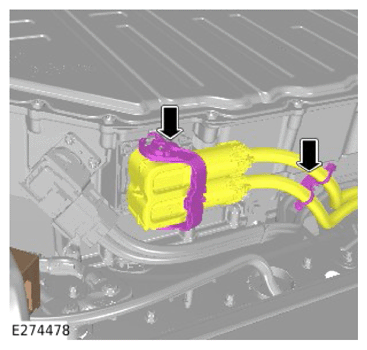

- Connect the HV traction circuit electrical connector.
- Install the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

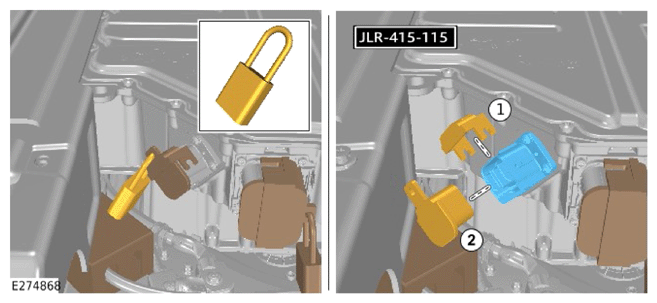

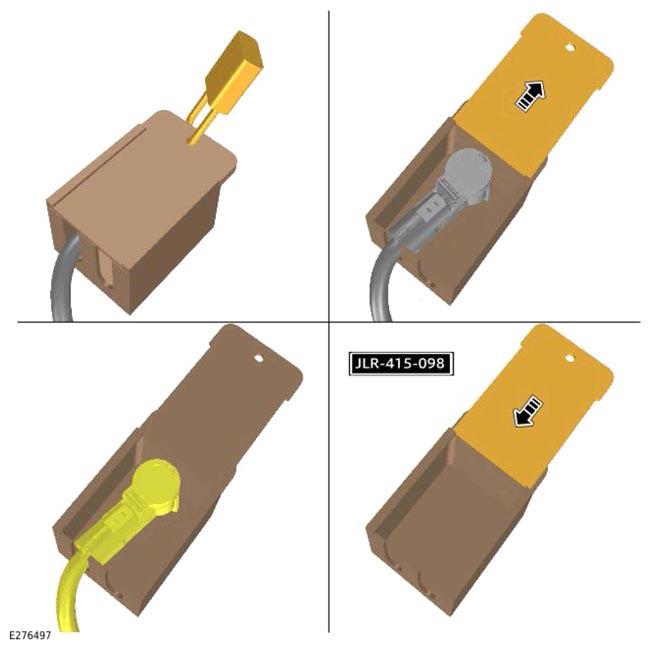

- Remove the insulated padlock.
- Remove the special tool from the HV battery connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the HV auxiliary circuit electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

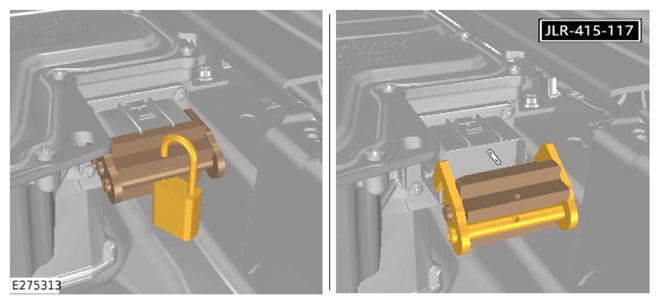

- Remove the insulated padlock.
- Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

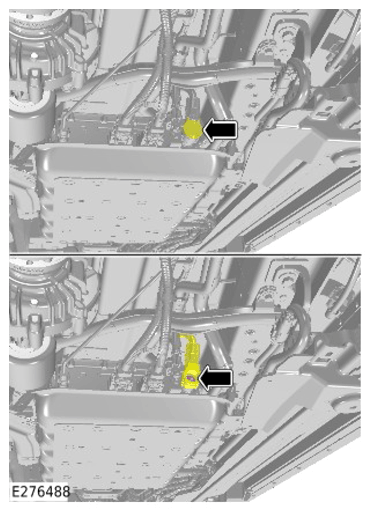

Install the MSD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

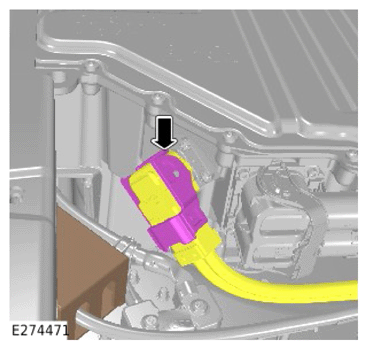

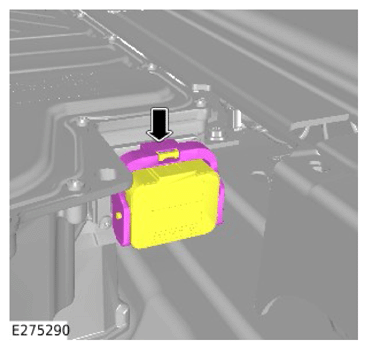

Connect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

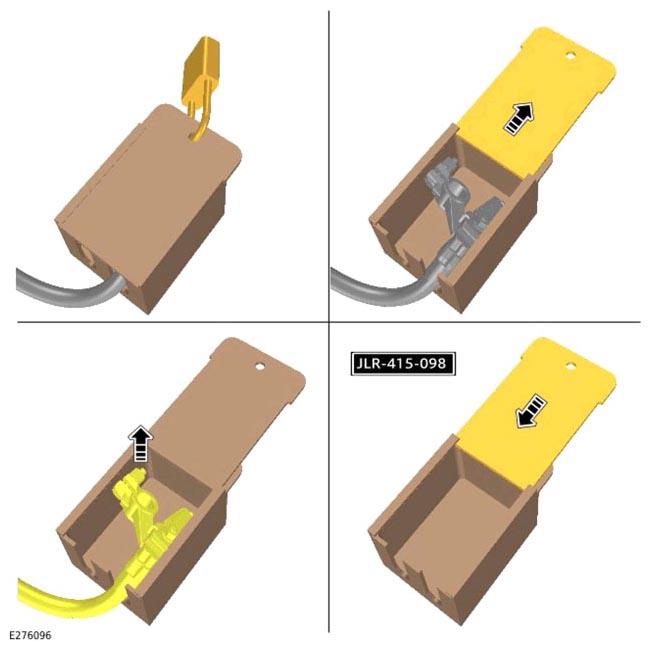

- Remove the insulated padlock.
- Open the lid of the special tool.
- Remove the DC/DC cable from the special tool.
- Close the lid of the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the DC/DC cable.
- Install and tighten the nut.
  Torque : 12 Nm
- Close the cover.
Install the left undershield.
Refer to: LEFT UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

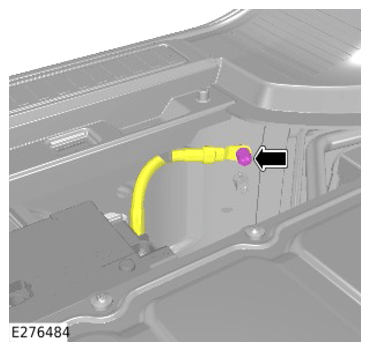

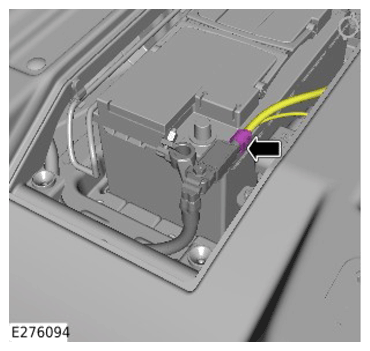

Connect the electrical connector to the auxiliary battery.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

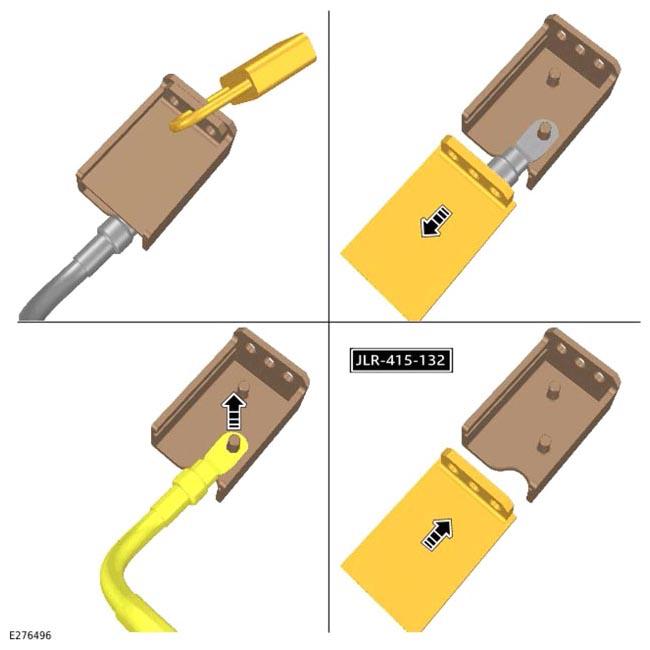

- Remove the insulated padlock.
- Open the lid of the special tool.
- Remove the ground cable from the special tool.
- Close the lid of the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the ground cable.
- Install and tighten the nut.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

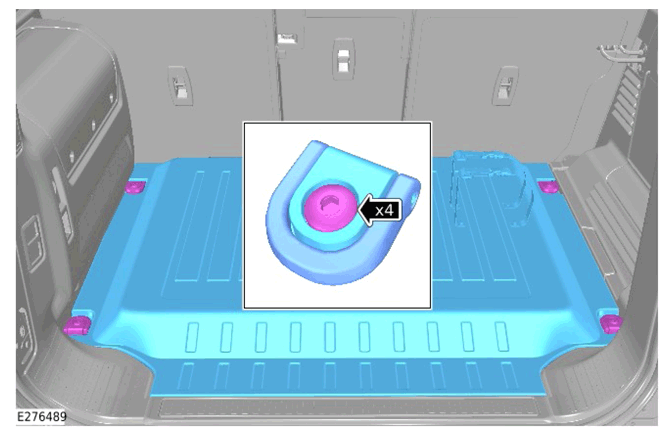

- Install the luggage compartment floor trim.
- Install and tighten the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the insulated padlock.
- Open the lid of the special tool.
- Remove the startup battery ground cable from the special tool.
- Close the lid of the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

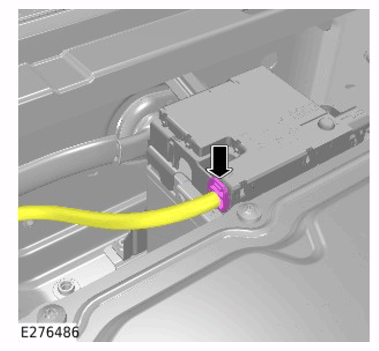

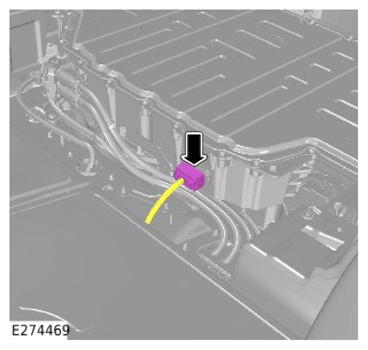

Connect the electrical connector to the BMS sensor.
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

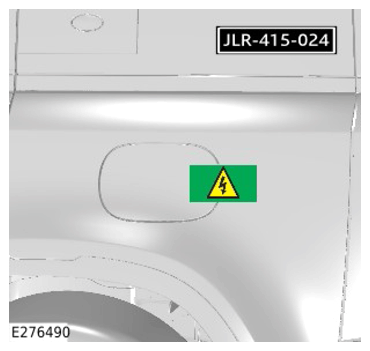

Remove the protective sticker from the charge flap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the safe status sign and display the active sign where it is clearly visible. The sign should state that:
- The vehicle HV electrical system is operational.
- The vehicle HV electrical system is active.
Use the JLR approved diagnostic equipment to read and clear any DTC .
General Equipment: Jaguar Land Rover approved diagnostic equipment
The EVAP must now sign the cancellation and power up sections of the PTW .
