PHEV Power Down/Up - Complete Vehicle - Pathfinder (G2798213): DEPOWER
- It is the responsibility of the Electric Vehicle Authorised Person (EVAP) or the Electric Vehicle Senior Authorised Person (EVSAP) to make sure they comply with any local legislation regarding working with High Voltage (HV) within this procedure.
- This procedure must be completed in the exact sequence shown. Failure to do so could result in serious personal injury.
- This procedure requires the use of class 0 Personal Protective Equipment (PPE), all persons involved in this procedure must have read and understood the PPE requirements as detailed in ELECTRIC VEHICLE SAFETY RULES (G2324544) .
- The approved PPE must be worn where indicated by the orange PPE icons within this procedure, all persons involved in this procedure must have read and understood ABOUT THIS MANUAL (G2255554) before continuing.
- All safety locking device keys must be kept in the designated key lock box at least 5 meters away from the vehicle.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
-
WARNING: Jaguar Land Rover (JLR) EVAP trained technicians only.
This procedure involves working on EV systems containing HV . Only technicians qualified to EVAP level or higher are allowed to perform this procedure. It is mandated that the entire power down/up procedure is completed by a single EVAP only, all technicians involved with the steps in this procedure must have read and understood the EV Safety Rules.
Refer to: ELECTRIC VEHICLE SAFETY RULES (G2324544) .
-
All steps showing the Safety Accompanying Person icon require an Electric Vehicle Competent Person (EVCP) within the vicinity of the power down procedure. This person must have access to the safety hook at all times.

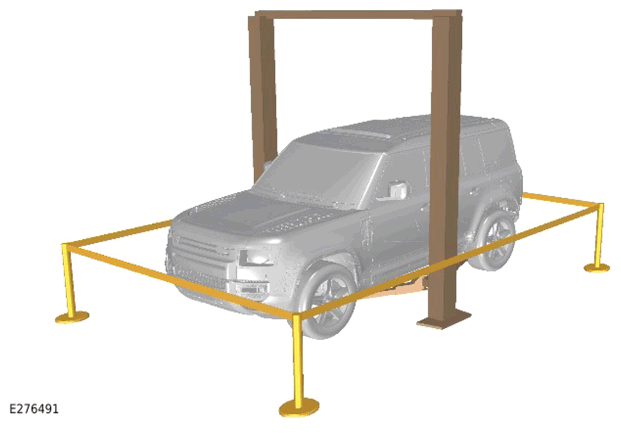

- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Position the EV safety barrier around the vehicle at a minimum distance of 1 meter to all points on the vehicle.
- Before handling any HV connectors, the EVAP must refer to the HV electrical connector operation and inspector document.
-
- Check the Instrument Cluster for Warning symbols and messages.
-
WARNING: If any Diagnostic Trouble Code(s) (DTC) relating to the HV system the vehicle must be quarantined.
Using the JLR approved diagnostic equipment complete a diagnostic check on the vehicle for any stored DTC relating to the HV system.
General Equipment: Jaguar Land Rover approved diagnostic equipment
- If any of the following DTC
are stored, do not
continue with the Plug-in Hybrid Electric Vehicle (PHEV) power down/up procedure and follow the approved process for EV
Quarantine.
Refer to: ELECTRIC VEHICLE QUARANTINE
- P0AA1-00 Hybrid/EV Battery Positive Contactor Circuit Stuck Closed.
- P0AA4-00 Hybrid/EV Battery Negative Contactor Circuit Stuck Closed.
- P0A7E-00 Hybrid/EV Battery Pack Over Temperature.
- P0A7E-4B Hybrid/EV Battery Pack Over Temperature.
- If any other HV system related DTC are stored, these must be investigated using the JLR approved diagnostic equipment.
- Make sure that the vehicle is in PARK, the Electric Park Brake (EPB) is released, the ignition is switched off and the doors are unlocked.
Remove all smart keys from the vehicle and store at least 5 meters away from the vehicle, locked in the designated key box. Press the ignition switch to verify that there is no communication with the smart key.
Special Tool(s): JLR-415-018
- Make sure that the appropriate sign is displayed on the vehicle windshield. The sign should state that:
- The vehicle HV electrical system is operational.
- The vehicle HV electrical system is active.
-
WARNING: All external 12 volt sources must be disconnected from the vehicle before proceeding.
Make sure that all external 12 volt sources are disconnected from the vehicle. For example; towbar sockets, 12 volt accessory sockets and charging points.
-
WARNING: Work must not be completed on the EV while connected to an external HV power source. Failure to follow this instruction may result in serious personal injury.
Disconnect any external HV power source from the vehicle.
Apply the protective sticker to the charge flap on the vehicle as shown in the illustration, make sure the charge flap can not be opened when applied.
Special Tool(s): JLR-415-024
- Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Disconnect the electrical connector from the Battery Monitoring Sensor (BMS) sensor.
-
WARNING: The key must be placed in the designated key box and secured by the responsible EVAP .

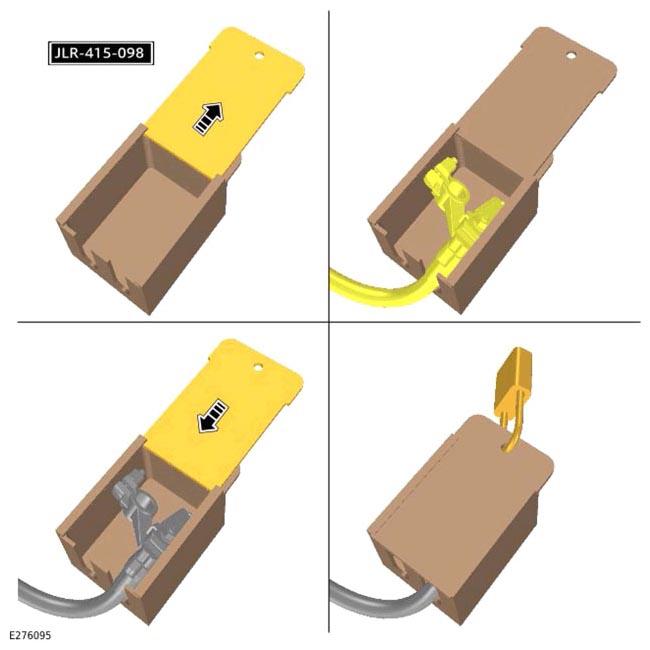

- Open the lid of the special tool.
Special Tool(s): JLR-415-098
- Install the startup battery ground cable into the special tool.
- Close the lid of the special tool.
- Lock the special tool using an insulated padlock.
General Equipment: Insulated padlock
- Open the lid of the special tool.
- Remove the 4 bolts.
- Remove the luggage compartment floor trim.
- Remove the nut.
- Disconnect the ground cable.
-
WARNING: The key must be placed in the designated key box and secured by the responsible EVAP .

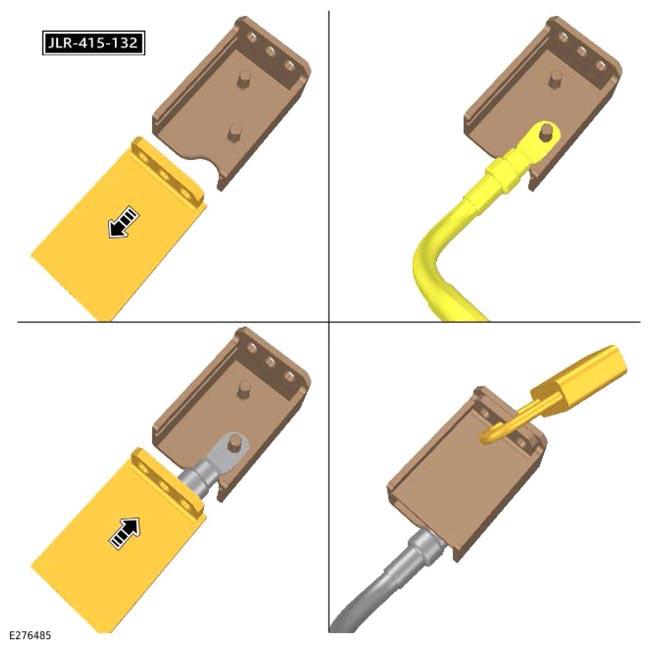

- Install the ground cable into the special tool.
Special Tool(s): JLR-415-132
- Lock the special tool using an insulated padlock.
General Equipment: Insulated padlock
- Install the ground cable into the special tool.
Disconnect the electrical connector from the auxiliary battery.
- Remove the left undershield.
Refer to: LEFT UNDERSHIELD
- Open the cover.
- Remove the nut.
- Disconnect the Direct Current to Direct Current converter (DC/DC) cable.
-
WARNING: The key must be placed in the designated key box and secured by the responsible EVAP .

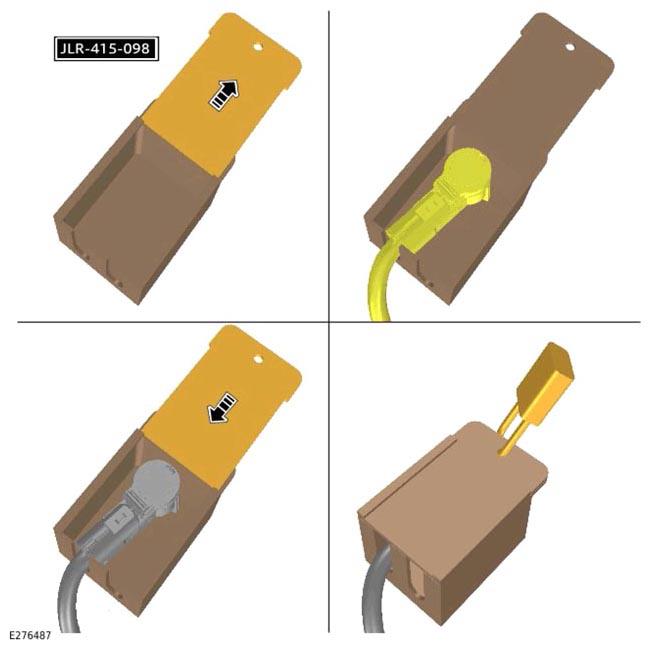

- Open the lid of the special tool.
Special Tool(s): JLR-415-098
- Install the DC/DC cable into the special tool.
- Close the lid of the special tool.
- Lock the special tool using an insulated padlock.
General Equipment: Insulated padlock
- Open the lid of the special tool.
Disconnect the electrical connector.
Remove the Master Service Disconnect (MSD).
-
WARNING: The key must be placed in the designated key box and secured by the responsible EVAP .

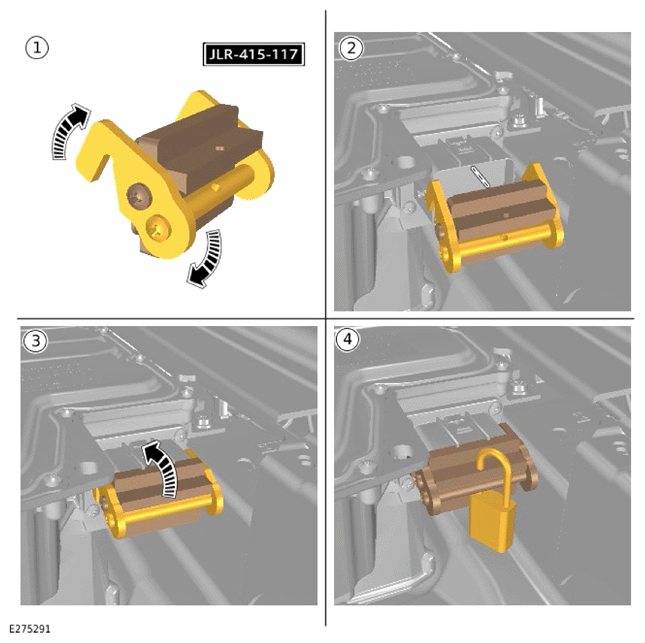

- Rotate the locking tabs.
Special Tool(s): JLR-415-117
- Install the lock-off tool.
- Engage the locking tabs.
- Install the insulated padlock.
General Equipment: Insulated padlock
- Rotate the locking tabs.
Place the MSD and all padlock keys in the designated key box and lock securely. The key to the lock box must be kept by the EVAP . Refer to the EV Safety Rules for further instructions if required.
-
WARNING: If this step is not followed there could potentially be residual voltage in the HV system.

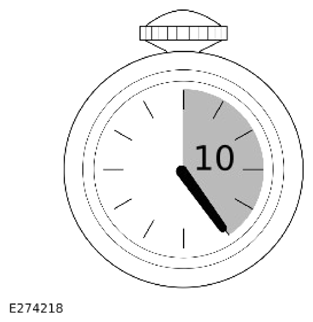

Allow a minimum of 10 minutes for the HV system to completely discharge.
Disconnect the HV auxiliary circuit electrical connector.
-
WARNING: The key must be placed in the designated key box and secured by the responsible EVAP .

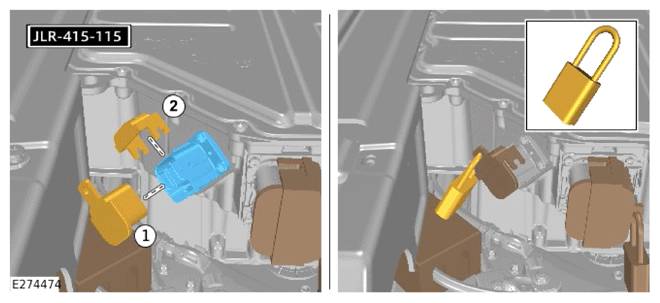

- Install the special tool to the HV
battery connector.
Special Tool(s): JLR-415-115
- Lock the special tool using an insulated padlock.
General Equipment: Insulated padlock
- Install the special tool to the HV
battery connector.
- Use the approved JLR diagnostic equipment, follow on screen instructions for the Hybrid/Electric Vehicle Power Down - Auxiliary Circuit application.

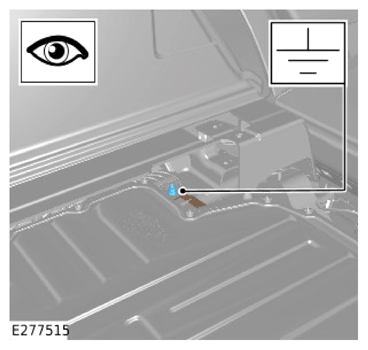

- The image shows the ground point to be used in the pathfinder application. The application will require the following special tools:
Special Tool(s): JLR-415-134 , JLR-415-135 , JLR-415-136 , JLR-415-137
- If the Hybrid/Electric Vehicle Power Down application resulted in passed voltage tests, proceed to step 35.
- If the Hybrid/Electric Vehicle Power Down application resulted in a failed voltage test, Do not disconnect the special tool from the HV battery cable. Place the vehicle in quarantine as detailed in step 34 and contact JLR Technical Assistance (TA).
- Release the wiring harness clip.
- Disconnect the HV traction circuit electrical connector.
-
WARNING: The key must be placed in the designated key box and secured by the responsible EVAP .
- Install the special tool to the HV
battery connector.
Special Tool(s): JLR-415-114
- Lock the special tool using an insulated padlock.
General Equipment: Insulated padlock
- Install the special tool to the HV
battery connector.
- Use the approved JLR diagnostic equipment, follow on screen instructions for the Hybrid/Electric Vehicle Power Down - Traction Circuit application.
- The image shows the ground point to be used in the pathfinder application. The application will require the following special tools:
Special Tool(s): JLR-415-134 , JLR-415-135 , JLR-415-136 , JLR-415-137
- If the Hybrid/Electric Vehicle Power Down application resulted in passed voltage tests, proceed to step 35.
- If the Hybrid/Electric Vehicle Power Down application resulted in a failed voltage test, Do not disconnect the special tool from the HV battery cable. Place the vehicle in quarantine as detailed in step 34 and contact JLR TA .
- Quarantine the vehicle and contact JLR TA
.
Refer to: ELECTRIC VEHICLE QUARANTINE
- Make sure that the appropriate sign is displayed on the vehicle, where it is clearly visible. The sign should state that:
- Danger electrical system live.
- Vehicle electrical system live.
- Quarantine the vehicle and contact JLR TA
.
Some electrical circuits in the HV system remain connected. Therefore, the active sign must remain displayed on the vehicle, where it is clearly visible.
-
NOTE: Only an EVAP trained technician can issue a Permit To Work (PTW).
A PTW can now be issued by the EVAP using the instruction detailed in the EV safety rules.
