Electric Vehicle Quarantine (G2792480): Quarantine

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: A vehicle cover can be placed over the vehicle during the quarantine period; to prevent damage to the vehicle, for example water ingress.
    G14517736Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • The vehicle must now be positioned outside and quarantined for 48 hours  , where the following conditions are met;
    • Ample space must  be left between the vehicle and other vehicles, buildings and flammable or combustible objects throughout the quarantine period. A distance of 15 meters (50 feet) is recommended.
    • Access to the vehicle for emergency services must  be maintained throughout the quarantine period.
    • Access to the vehicle must  be secured against unauthorized access throughout the quarantine period.
    • The Warning safety sign must  be displayed in the windshield on the drivers side of the vehicle throughout the quarantine period.

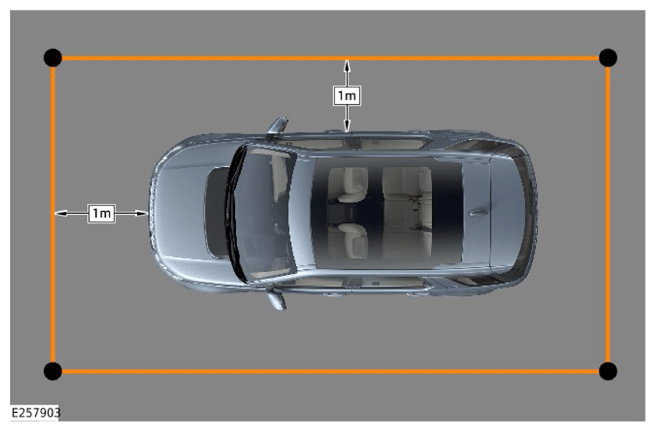

    • A safety barrier must  be placed around the vehicle, leaving a 1 meter (3 feet) gap between the vehicle and the safety barrier throughout the quarantine period.
  2. When the vehicle has been placed into quarantine, contact JLR  Technical Assistance (TA) for further information.
