Plug-In Hybrid Electric Vehicle Battery Coolant Hoses And Pipes
WARNING: This page is about a different variant/trim than selected.

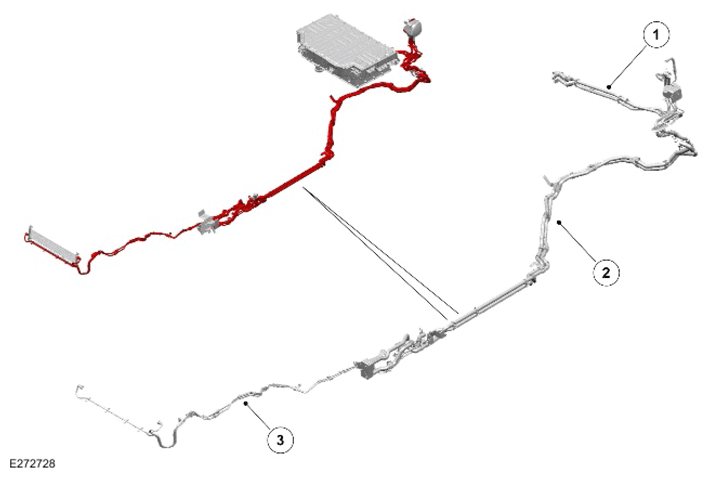

| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant pipes from the PHEV battery coolant pump to the PHEV battery |
| 2 | Coolant pipes from the coolant diverter valve to the PHEV battery coolant pump |
| 3 | Coolant pipes from the coolant diverter valve to the PHEV battery coolant low temperature radiator |
The pipes and hoses connect the various components in the PHEV battery coolant system in series and parallel. This allows the PHEV components coolant to circulate through the PHEV battery and the low temperature radiator. Some of the hoses are covered with a protective sleeve.
