HV System Coolant Hoses And Pipes
WARNING: This page is about a different variant/trim than selected.

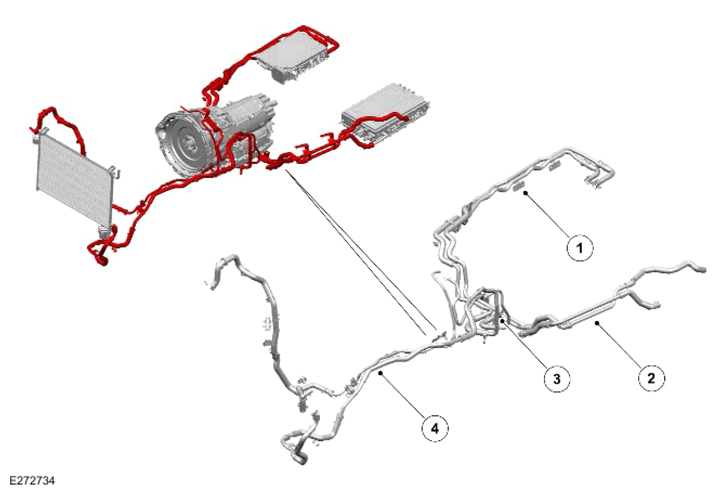

| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant pipes to the inverter |
| 2 | Coolant pipes to the High Voltage Integrated Box |
| 3 | Coolant pipes to the CIMG coolant jacket |
| 4 | Coolant pipes to the HV components coolant low temperature radiator |
The pipes and hoses connect the various components in the HV components coolant system in series and parallel. This allows the HV components coolant to circulate through the PHEV battery and the HV system components. Some of the hoses are covered with a protective sleeve.
