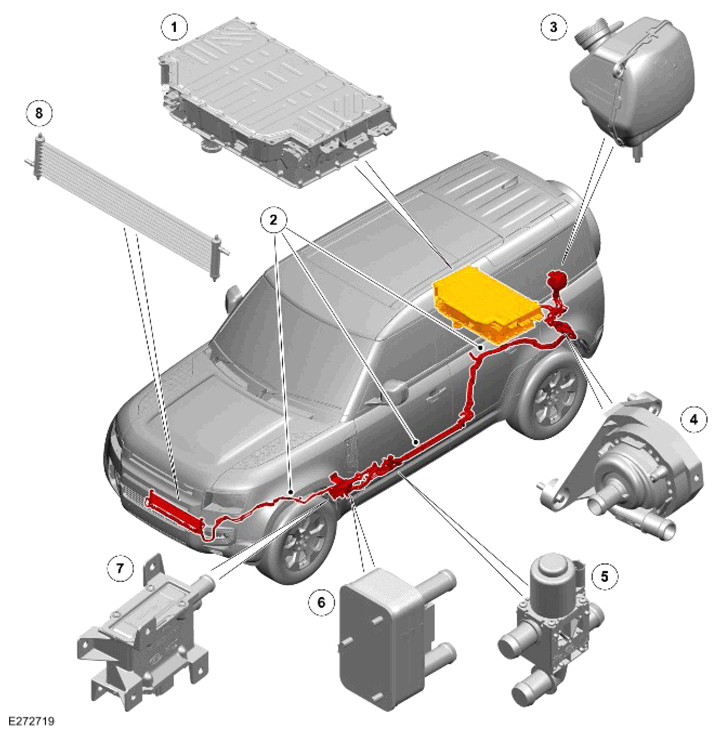

Component Location - 1 Of 2 - Plug-In Hybrid Electric Vehicle Battery System Components
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the High Voltage (HV) electric system until the HV
system on the vehicle is powered down.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Plug-in Hybrid Electric Vehicle (PHEV) battery |
| 2 | PHEV battery coolant pipes |
| 3 | PHEV battery coolant expansion tank |
| 4 | PHEV battery coolant pump |
| 5 | Coolant diverter valve |
| 6 | PHEV battery coolant cooler |
| 7 | PHEV battery coolant heater |
| 8 | PHEV battery coolant low temperature radiator |
