Battery And Cables (G2749057): Description: Inverter
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

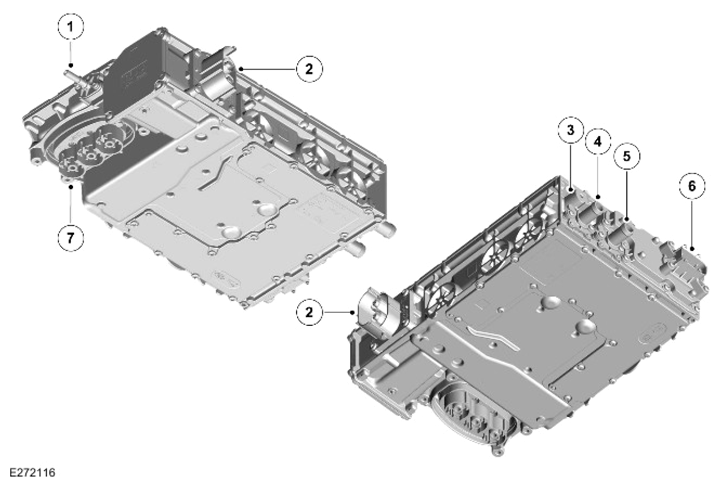

| ITEM |
DESCRIPTION |
| 1 |
Breather connection |
| 2 |
HV
connector to the PHEV
battery |
| 3 |
Coolant connection inlet |
| 4 |
Coolant connection outlet |
| 5 |
Vehicle harness electrical connector |
| 6 |
HV
3-phase connector to the CIMG |
The inverter has connections to:
- The CIMG
- The PHEV
battery
- The vehicle electrical harness.
