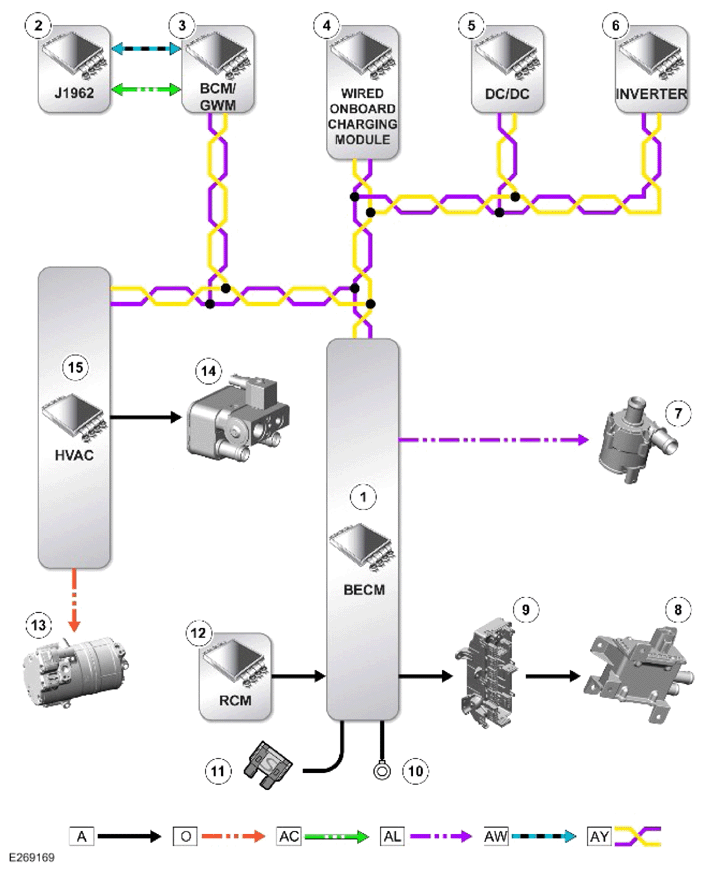

Control Diagram - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the HV
electric system until the HV
system on the vehicle is powered down.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AC = DIAGNOSTIC: AL = PWM : AW = BROADR-REACH®: AY = HS CAN POWER MODE ZERO SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | BECM |
| 2 | Diagnostic Connector (J1962) |
| 3 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 4 | PHEV battery onboard charger (Part of High Voltage Integrated Box) |
| 5 | DC/DC (Part of High Voltage Integrated Box) |
| 6 | Inverter |
| 7 | PHEV battery coolant pump |
| 8 | PHEV battery coolant heater |
| 9 | Rear Junction Box (RJB) |
| 10 | Ground |
| 11 | Power supply |
| 12 | RCM |
| 13 | Electric A/C compressor |
| 14 | PHEV battery coolant cooler |
| 15 | HVAC |
