Component Location
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not do any work on the High Voltage (HV) electric system until the HV
system on the vehicle is powered down.

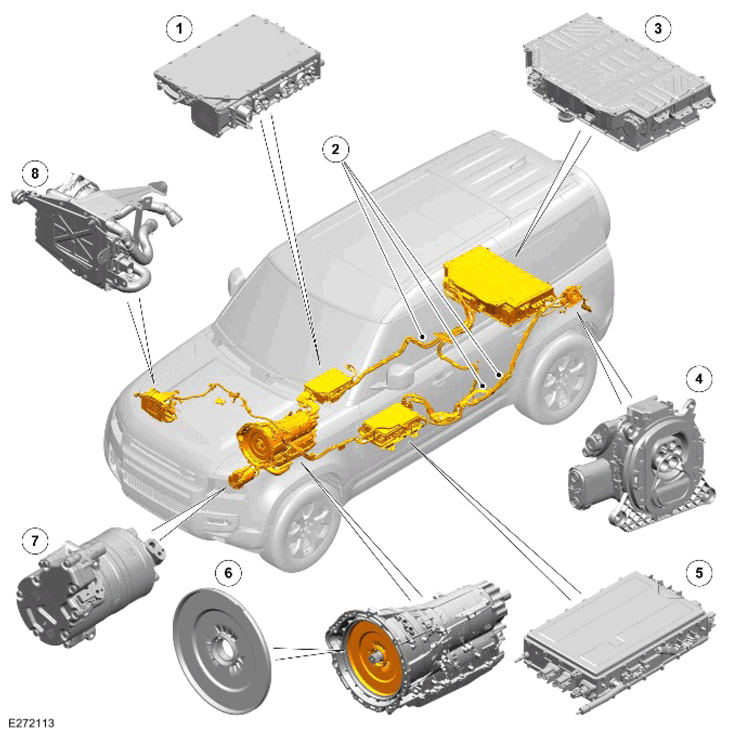

| ITEM | DESCRIPTION |
|---|---|
| 1 | Inverter |
| 2 | HV cables |
| 3 | Plug-in Hybrid Electric Vehicle (PHEV) battery |
| 4 | Charging port |
| 5 | High Voltage Integrated Box |
| 6 | Crank Integrated Motor Generator (CIMG) |
| 7 | Electric Air Conditioning (A/C) compressor |
| 8 | HV interior heater |
