Auxiliary Radiator
NOTE:

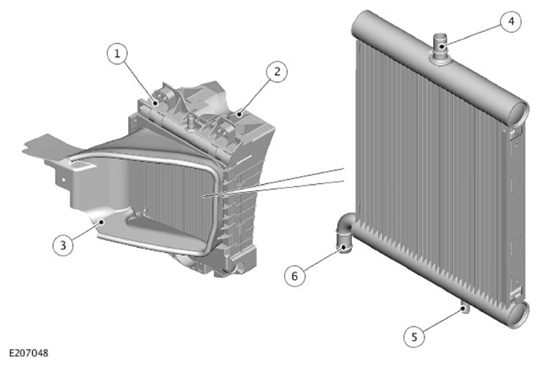

Left auxiliary radiator shown, right is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Radiator support bracket |
| 2 | Rear air duct |
| 3 | Front air duct |
| 4 | Hose connection - Engine coolant outlet |
| 5 | Isolator |
| 6 | Hose connection - Engine coolant inlet |
The auxiliary radiators are located on each side of the cooling pack, behind the outer air intakes in the front bumper. The auxiliary radiators are installed in air ducts attached to the front bumper armature and the front end carrier. The lower end tank of each auxiliary radiator is located in the air ducts by a spigot equipped with an isolator bush. The upper end tank of each auxiliary radiator is held in a support bracket in the air duct.
The auxiliary radiators are connected in parallel with the radiator to increase the engine cooling capacity.
