Throttle Body (G1998242): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the intake manifold assembly.
Refer to: INTAKE MANIFOLD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

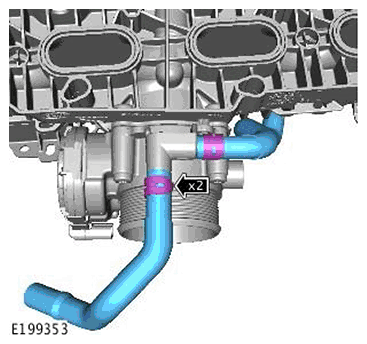

Remove the coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the throttle body. Discard the seal.
