Throttle Body (G1998242): Installation
WARNING: This page is about a different variant/trim than selected.
- Install the throttle body. Renew the seal.
Renew Part: Throttle body to intake manifold seal Quantity: 1 .
Torque : 12 Nm
-

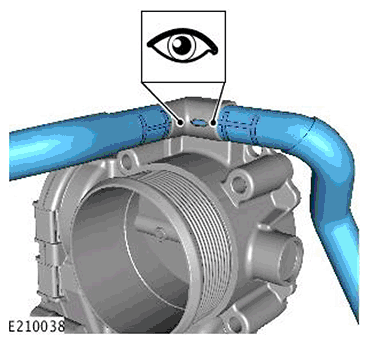

CAUTION: Make sure that the alignment marks on the cooling hoses are aligned with the marks on the throttle body.
Install the coolant hoses.
- Install the intake manifold assembly.
Refer to: INTAKE MANIFOLD .
