Upper Active Grille Air Shutter (G2798196): Installation
WARNING: This page is about a different variant/trim than selected.
-
CAUTION: Take extra care not to damage the component.

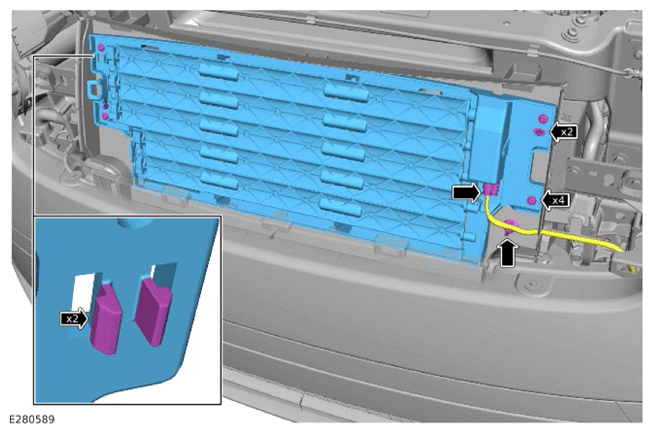

- Install the upper active grille air shutter.
- Secure the 2 clips.
- Install and tighten the 4 screws.
- Install the wiring harness clip.
- Connect the electrical connector.
- Install the radiator grille.
Refer to: RADIATOR GRILLE .
