Thermostat Housing (G1998228): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Noise, Vibration and Harshness (NVH) pad.
CAUTION:
- Be prepared to collect escaping coolant.
- Mark the position of the components prior to removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

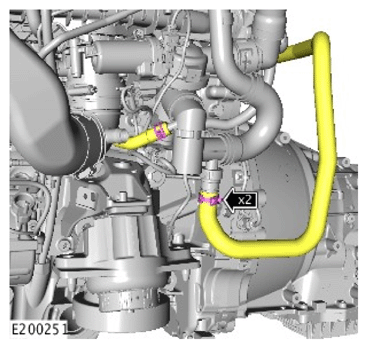

Release the coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

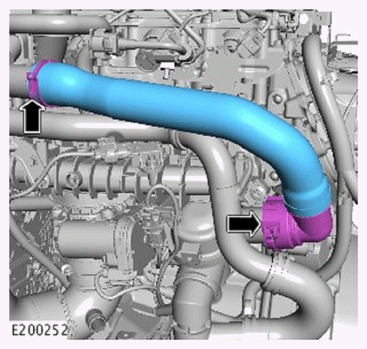

Remove the coolant outlet hose from the thermostat housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

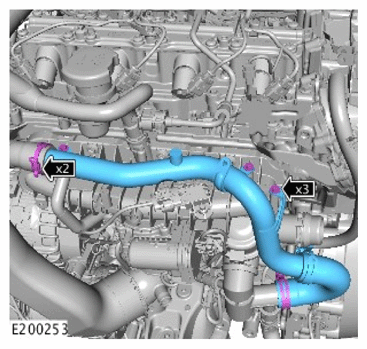

Remove the coolant bypass hose from the thermostat housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

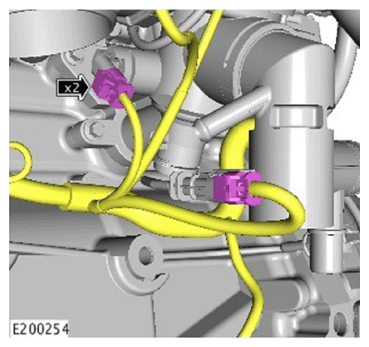

Disconnect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

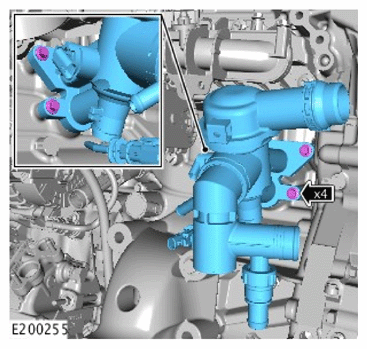

Remove the thermostat housing.
