Engine Coolant Degas Separator (G2046485): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

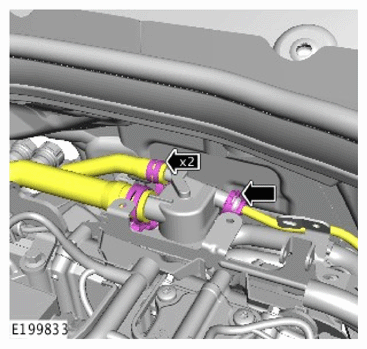

Release the 3 upper coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

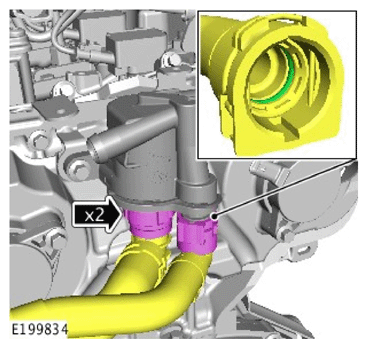

Release the 2 lower coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

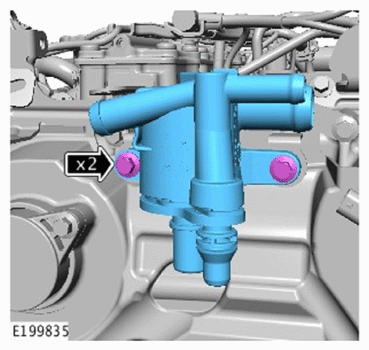

Remove the coolant degas separator.
