Coolant Pump (G1998226): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the intake air resonator.
Refer to: INTAKE AIR RESONATOR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

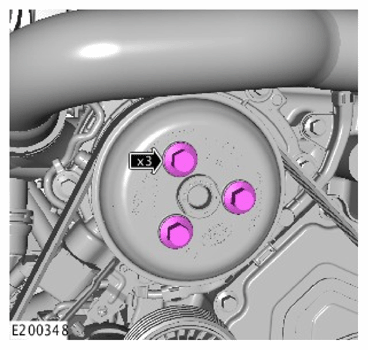

Loosen the bolts, but do not fully remove.
NOTE: Note the position of the accessory drive belt to aid installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

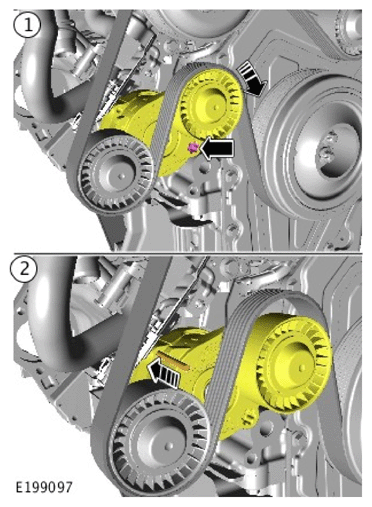

1. Release the accessory drive belt tension.
2. Insert a suitable tool, where illustrated, to prevent tension being applied to the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

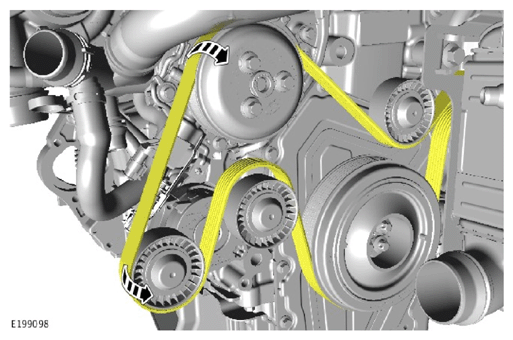

Release the accessory drive belt from the pulleys, as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

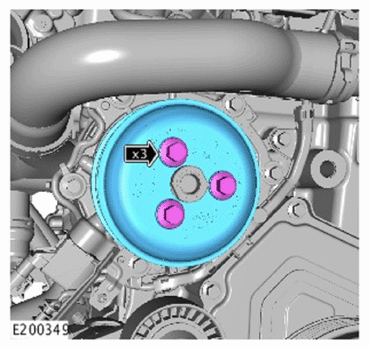

Remove the coolant pump pulley.
CAUTION: Make sure that the wiring harness is positioned securely to one side, to prevent it being trapped between the coolant pump and cylinder block when the coolant pump is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

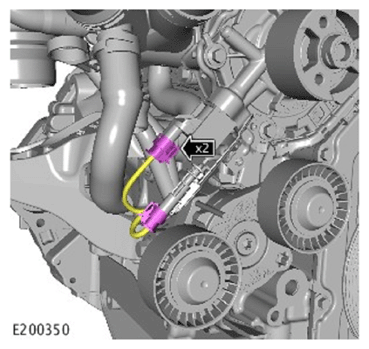

Disconnect the coolant pump electrical connectors.
CAUTION:
- Be prepared to collect escaping coolant.
- If the coolant pump is to be reused, inspect the coolant pump seal for damage. If any damage is visible, a new coolant pump must be installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

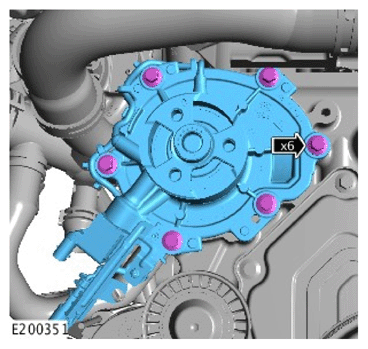

Remove the coolant pump.
