Auxiliary Coolant Pump (G2034835): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

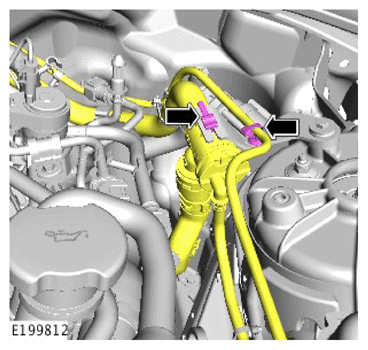

Release the coolant valve assembly.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

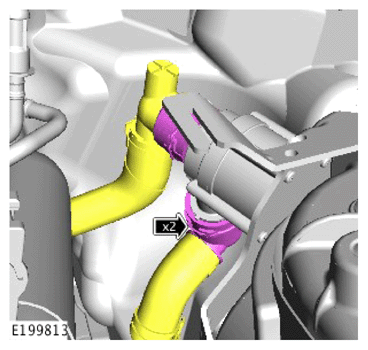

Release the clips and disconnect the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

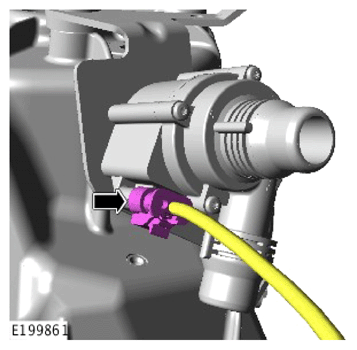

Disconnect the electrical connector.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

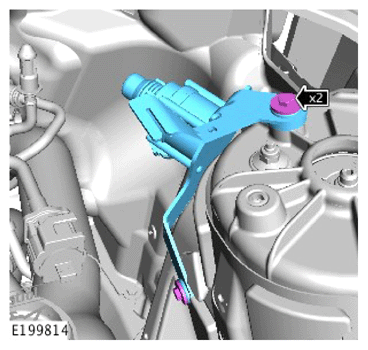

Remove the auxiliary coolant pump mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

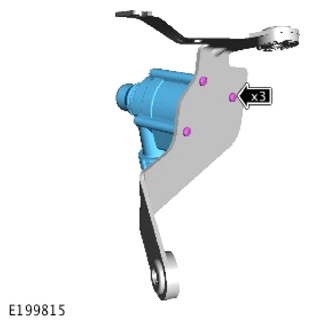

Remove the auxiliary coolant pump.
