Engine Coolant Inlet Tube
WARNING: This page is about a different variant/trim than selected.

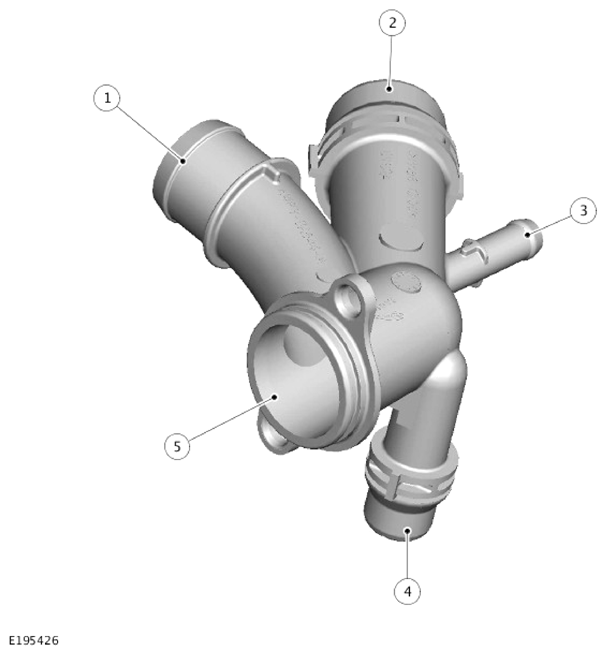

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hose connection - Electric thermostat |
| 2 | Hose connection - Radiator lower hose and coolant expansion tank |
| 3 | Hose connection - Turbocharger |
| 4 | Hose connection - ATF cooler |
| 5 | Cylinder block inlet connection |
The engine coolant inlet tube routes cooled engine coolant to the cylinder block inlet connection.
