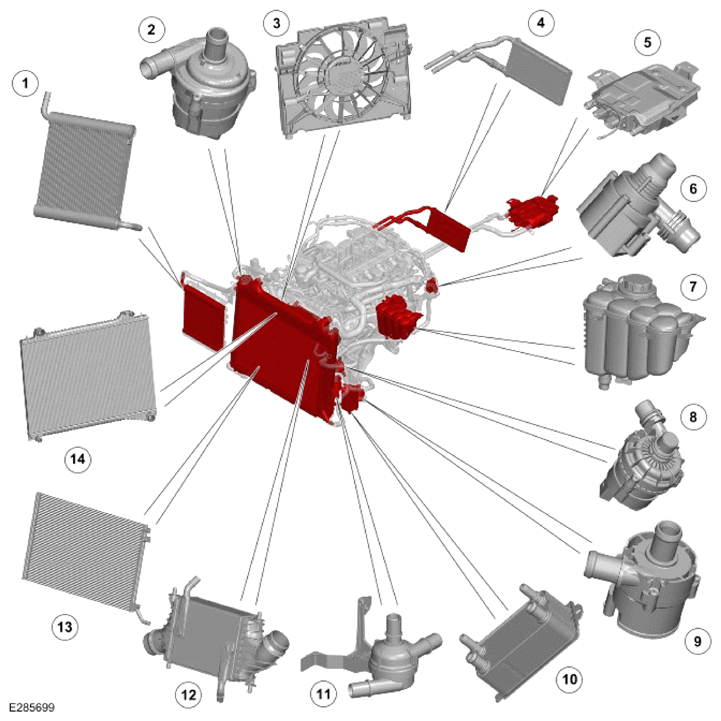

Component Location - 1 Of 3
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Auxiliary radiator |
| 2 | Auxiliary coolant pump - High Voltage (HV) interior heater |
| 3 | Electric cooling fan shroud |
| 4 | Heater core |
| 5 | HV interior heater |
| 6 | Auxiliary coolant pump - Heater core |
| 7 | Coolant expansion tank |
| 8 | Charge air coolant pump |
| 9 | Auxiliary coolant pump - Automatic Transmission Fluid (ATF) cooler |
| 10 | ATF cooler |
| 11 | Coolant degas separator - Charge air cooler circuit |
| 12 | Charge air cooler |
| 13 | Charge air radiator |
| 14 | Radiator |
