Variable Camshaft Timing Unit (G2757519): Installation

The following step(s) applies to:

All vehicles

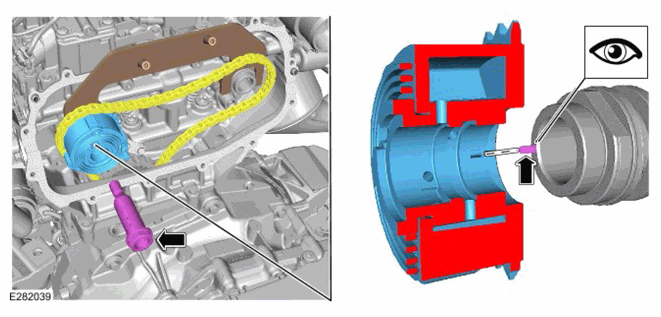

1. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

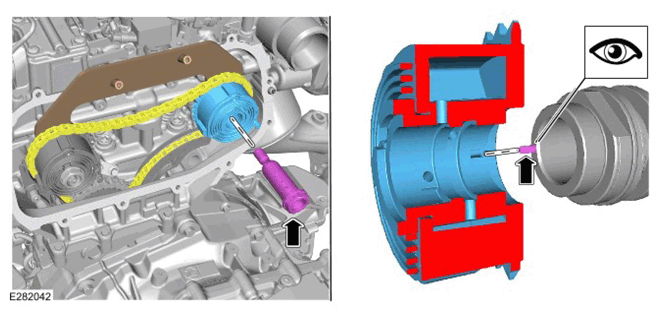

   • Install the intake camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
   • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
   • Install and tighten a new VCT  unit center bolt.

     Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

     Torque

     Stage 1: 10 Nm

     Stage 2: Loosen 90°

2. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position as illustrated.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

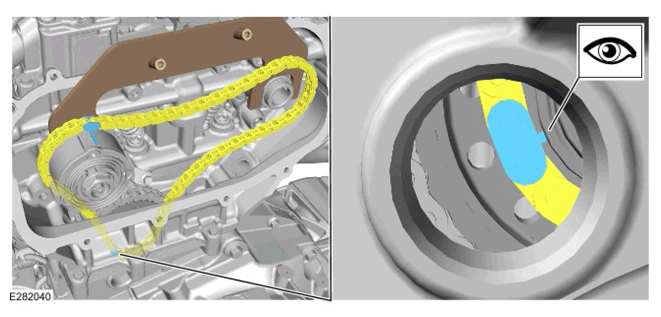

   Inspect if the highlighted links on the timing chain is aligned with the timing mark on the idler sprocket and the VCT  unit as illustrated.

3. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

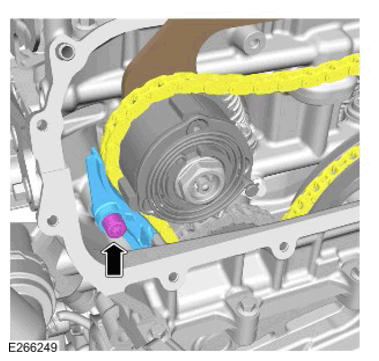

   • Install a new left upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the bolt.

     Renew Part: Left side timing chain guide bolt Quantity: 1 .

     Torque  : 25 Nm

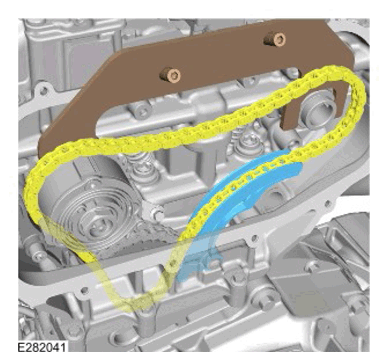

4. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

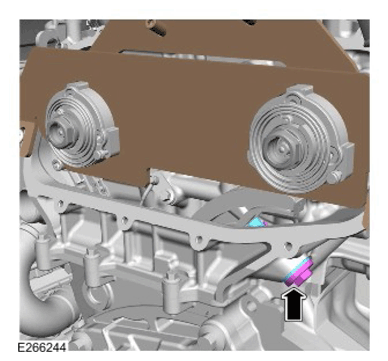

   Install a new upper timing chain tensioner arm.

   Renew Part: Timing chain tensioner arm Quantity: 1 .

5. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the exhaust camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
   • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
   • Install and tighten a new VCT  unit center bolt.

     Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

     Torque

     Stage 1: 10 Nm

     Stage 2: Loosen 90°

6. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position as illustrated.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

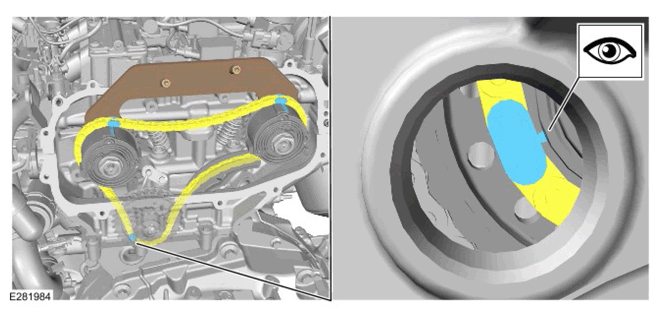

   Inspect if the highlighted links on the timing chain are aligned with the timing mark on the idler sprocket and the 2 VCT  units as illustrated.

7. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

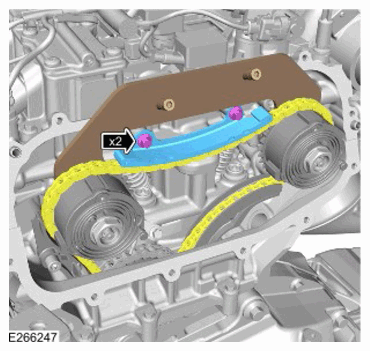

   • Install a new upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the 2 bolts.

     Renew Part: Upper timing chain upper guide bolt Quantity: 2 .

     Torque  : 11 Nm

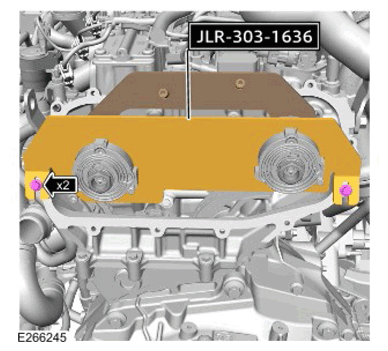

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

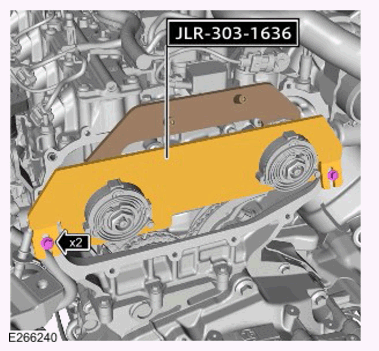

   • Install the special tool JLR-303-1636.

     Special Tool(s): JLR-303-1636

   • Install and tighten the 2 special tool bolts.

     Torque  : 13 Nm

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

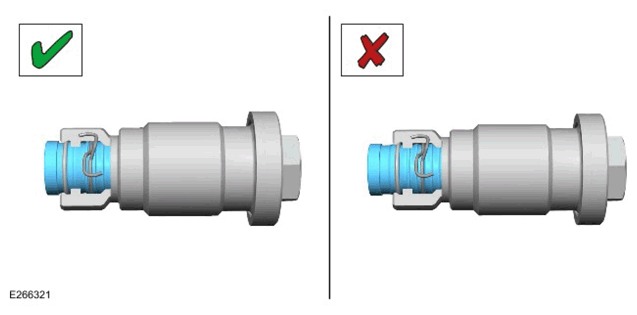

   Inspect if the new timing chain tensioner is in the reset position. The ratchet clip should be in the first groove as illustrated.

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the new timing chain tensioner.

    Renew Part: Upper timing chain tensioner Quantity: 1 .

    Torque  : 55 Nm

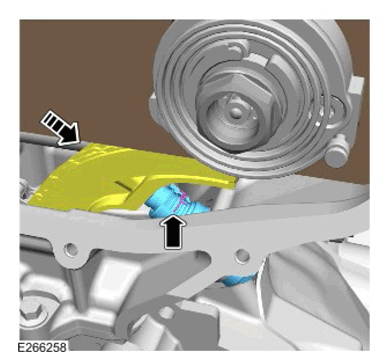

11. CAUTION:

    • Make sure that the timing chain tensioner piston is fully deployed.
    • Do not manually adjust the timing chain tensioner.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To properly install the timing chain tensioner, push the timing chain guide against the tensioner as illustrated. This allows the timing chain tensioner to reach its final tension position.

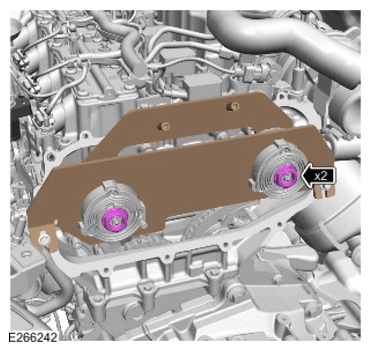

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 2 VCT  center bolts.

    Torque

    Stage 1: 25 Nm

    Stage 2: 60°

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 special tool bolts.
    • Remove the special tool JLR-303-1636.

      Special Tool(s): JLR-303-1636

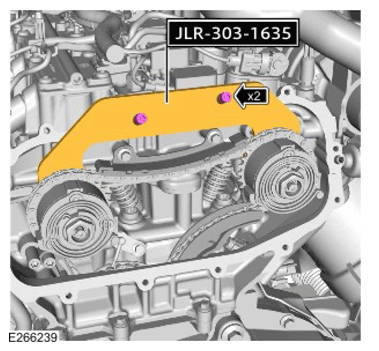

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Remove the 2 special tool bolts.
    • Remove the special tool JLR-303-1635.

      Special Tool(s): JLR-303-1635

    The following step(s) applies to:

    Non plug in hybrid electric vehicles only

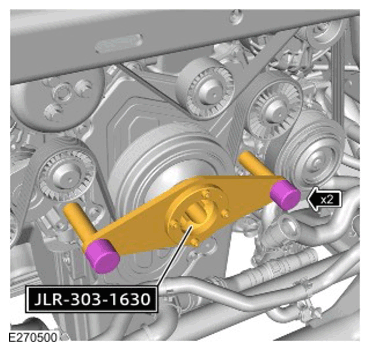

15. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Release the 2 special tool bolts.
    • Remove the special tool JLR-303-1630.

      Special Tool(s): JLR-303-1630

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

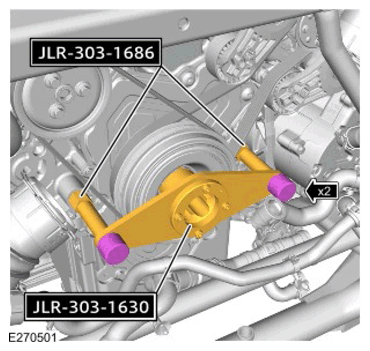

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Release the 2 special tool bolts.
    • Remove the special tools JLR-303-1630 and JLR-303-1686.

      Special Tool(s): JLR-303-1630  , JLR-303-1686

    The following step(s) applies to:

    All vehicles

17. NOTE: This step is to make sure that the timing components are properly installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool JLR-303-1656 crankshaft pulley locking tool to rotate the crankshaft 2 times clockwise.

    Special Tool(s): JLR-303-1656

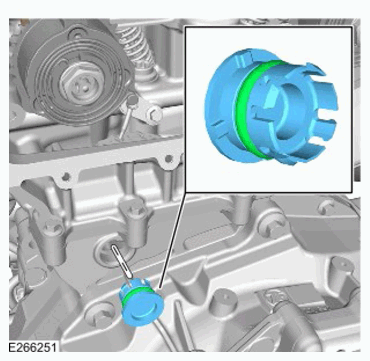

18. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new drive chain cap.

    Renew Part: Timing chain plug Quantity: 1 .

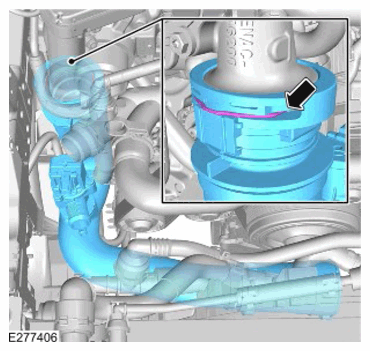

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the charge air cooler intake pipe.
    • Secure the charge air cooler intake pipe retaining clip.

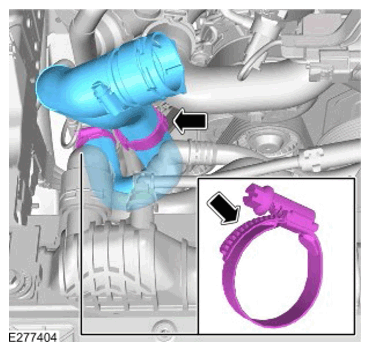

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

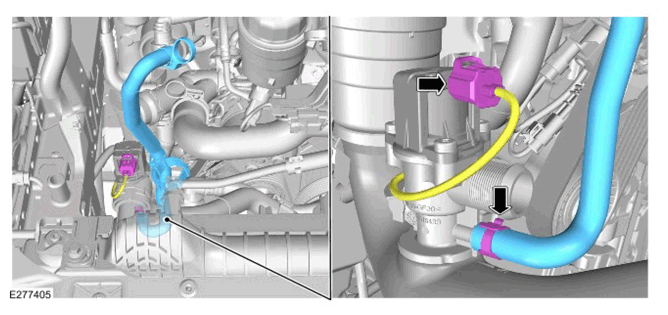

    • Install the hose.
    • Secure the hose clamp.
    • Connect the electrical connector.

21. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the hose.
    • Secure the hose clamp.
    • Secure the hose clip.

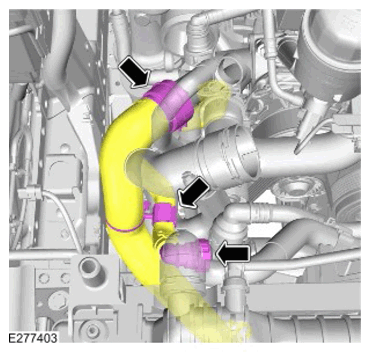

22. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Position the 2 hoses to their original position.
    • Secure the 2 hose connections.
    • Secure the hose clip.
23. Install the upper timing cover.

    Refer to: UPPER TIMING COVER .

24. Install the charge air cooler.

    Refer to: CHARGE AIR COOLER .

25. Connect the 12 V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

26. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power up the HV  system. Only technicians qualified to EVAP  level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER .
