Valves (G1998039): Installation

WARNING: This page is about a different variant/trim than selected.

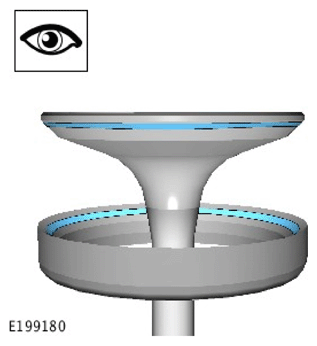

  1. G12004528Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Apply a small amount of fine grinding paste to the face of the valve.
    2. Install the valve into the cylinder head valve guide.
    3. Using a suitable tool, lap in the valve until a continuous mark is visible on both the valve and the valve seat.
    4. Remove the valve and clean off all the grinding paste from the valve and the valve seat.
  2. Install a new valve stem seal.

    Renew Part: Valve stem oil seals Quantity: 1 .

  3. Lubricate the valve stem with clean engine oil.
  4. Install the valve into the cylinder head valve guide.
  5. Install the valve spring and cap.
  6. Using the special tool, install the valve spring retaining collets.

    Special Tool(s): 303-252

  7. Repeat the installation procedure for the remaining valves.
  8. Install the cylinder head.

    Refer to: CYLINDER HEAD .

  9. Connect the startup battery ground cable.

    Refer to: SPECIFICATIONS .
