Timing Chains, Guides, And TENSIONERS (G2780478): Installation

The following step(s) applies to:

All vehicles

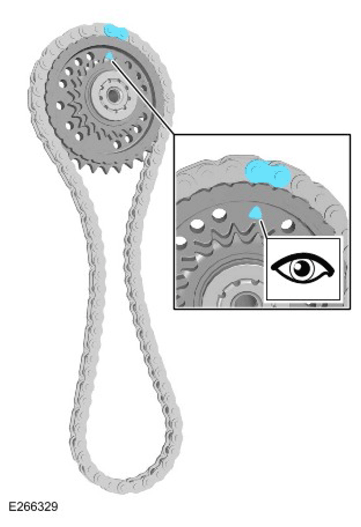

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the new timing chain to the new idler sprocket.

     Renew Part: Lower timing chain Quantity: 1 .

     Renew Part: Timing chain idler sprocket Quantity: 1 .

   • Inspect if the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.

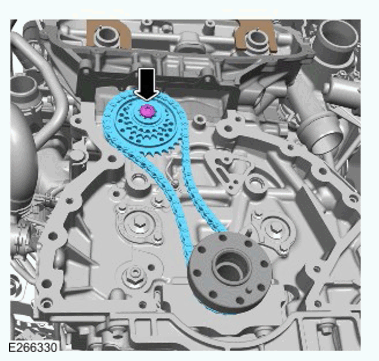

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the idler sprocket and timing chain assembly.
   • Install and tighten the new idler sprocket bolt.

     Renew Part: Timing chain idler sprocket bolt Quantity: 1 .

     Torque  : 35 Nm

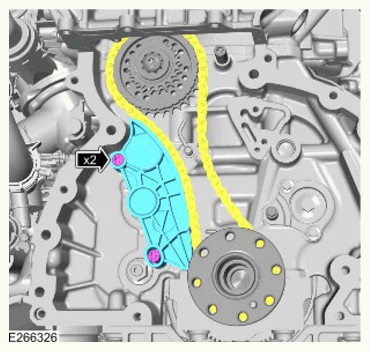

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new lower timing chain guide.

     Renew Part: Lower timing chain guide Quantity: 1 .

   • Install and tighten the 2 new lower timing chain guide bolts.

     Renew Part: Timing chain guide bolt Quantity: 2 .

     Torque  : 25 Nm

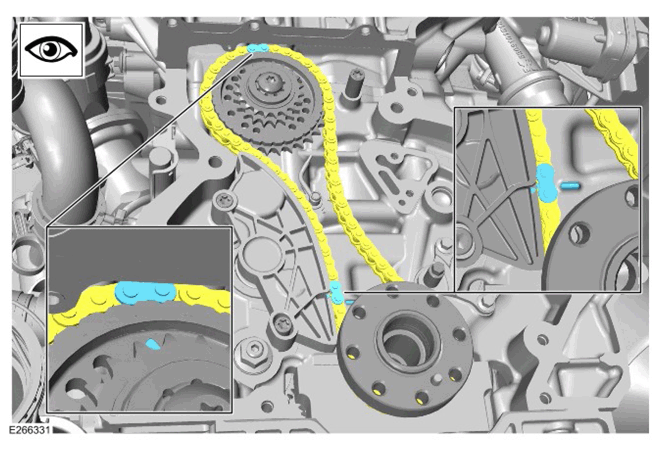

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Make sure the highlighted link on the timing chain is aligned with the timing mark on the idler sprocket as illustrated.
   • Make sure the highlighted link on the timing chain, the mark on the timing chain guide and the cylinder block are aligned as illustrated.

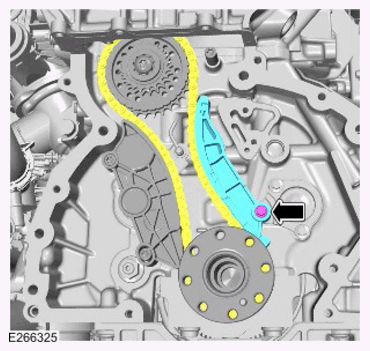

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new lower timing chain tensioner arm.

     Renew Part: Timing chain tensioner arm Quantity: 1 .

   • Install and tighten the new tensioner arm bolt.

     Renew Part: Lower timing chain tensioner guide pivot bolt Quantity: 1 .

     Torque  : 11 Nm

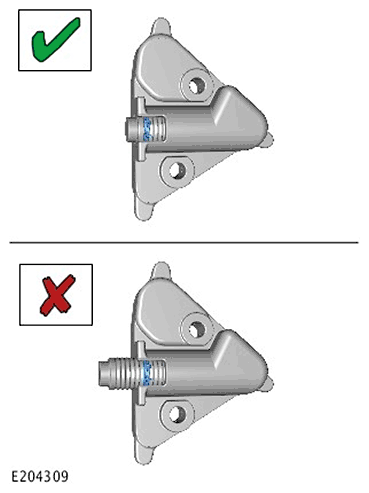

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Inspect if the timing chain tensioner is in the reset position. The ratchet clip should be in the first groove as illustrated.

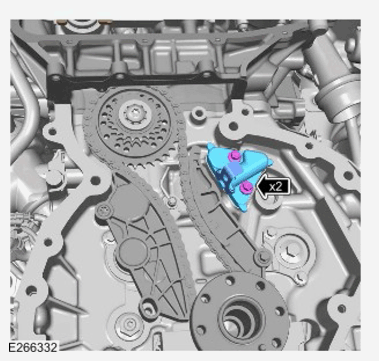

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new lower timing chain tensioner.

     Renew Part: Timing chain tensioner Quantity: 1 .

   • Install and tighten the 2 new bolts.

     Renew Part: Timing belt tensioner bolt Quantity: 2 .

     Torque  : 11 Nm

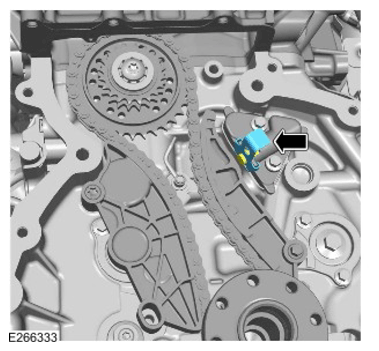

8. CAUTION: Make sure that the timing chain tensioner is fully deployed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Release the lower timing chain tensioner piston.

9. Install the upper timing chain.

   Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS .

10. Install the lower timing cover.

    Refer to: LOWER TIMING COVER .

11. Install the charge air cooler.

    Refer to: CHARGE AIR COOLER .

12. Connect 12 V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power Up the HV  system. Only technicians qualified to EVAP  level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER .
