Crankshaft Pulley (G1997933): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

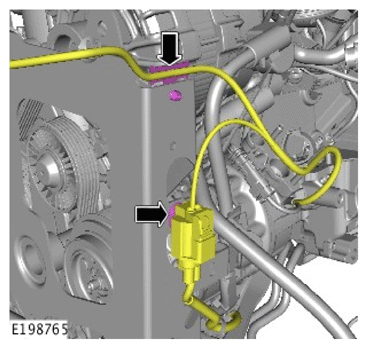

Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

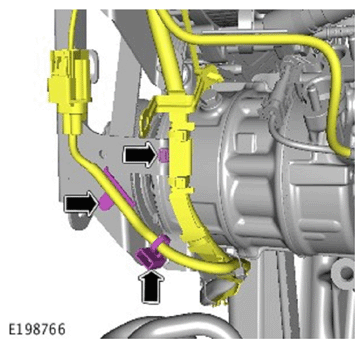

Remove the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

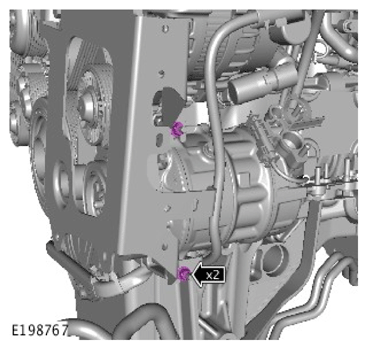

Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air radiator bracket.
CAUTION: Make sure that the special tool is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool onto the crankshaft pulley.

Special Tool(s): JLR-303-1630
CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

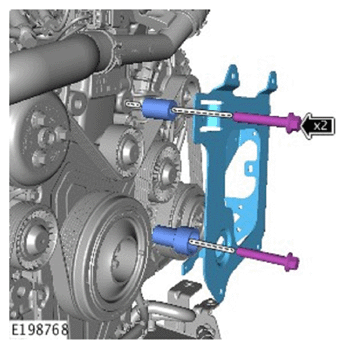

Remove the 4 crankshaft pulley retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the crankshaft pulley special tool.
  Special Tool(s): JLR-303-1630
- Remove the crankshaft pulley.
