Camshaft Carrier (G2172631): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
- Remove the upper timing chain.
Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS .
- Remove the Continuous Variable Valve Lift (CVVL) assembly.
Refer to: CONTINUOUS VARIABLE VALVE LIFT .
- Remove the fuel injectors.
Refer to: FUEL INJECTORS .
- Remove the valve cover vent oil separator.
Refer to: VALVE COVER VENT OIL SEPARATOR .
- Remove the evaporative emission canister purge valve.
Refer to: EVAPORATIVE EMISSION CANISTER PURGE VALVE .
- Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT .
- Remove the high pressure fuel pump.
Refer to: HIGH PRESSURE FUEL PUMP (G2043272) .

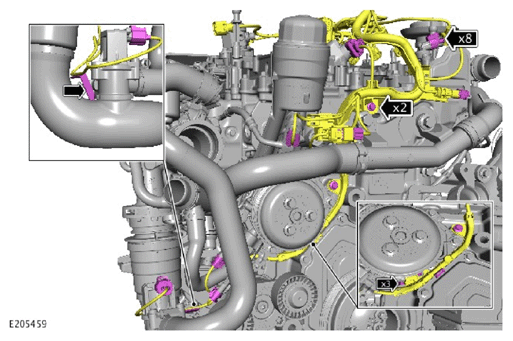

- Disconnect the 8 electrical connectors.
- Remove the 2 bolts.
- Release the wiring harness and reposition away from the valve cover assembly.
Remove the 2 engine cover support mounts.

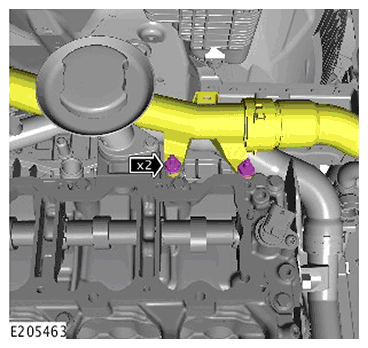

Remove the 2 retaining nuts and reposition the coolant bypass hose away from the valve cover assembly.

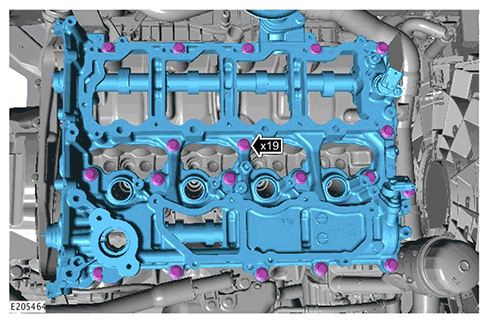

- Remove the 19 bolts.
- Remove the camshaft carrier assembly.

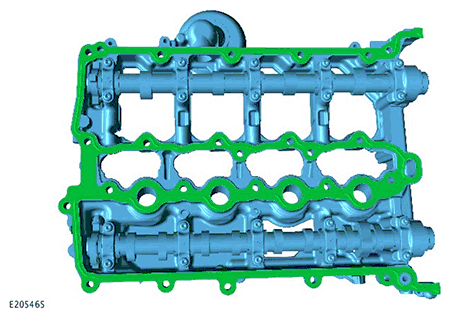

Remove and discard the camshaft carrier gasket.
-
NOTE: Do not disassemble further if the component is removed for access only.

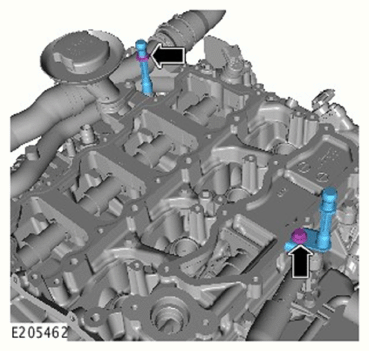

Remove the Camshaft Position (CMP) sensors. Inspect the O-ring seals, install a new component if damaged.
-
CAUTION: Remove and discard the O-ring seal.
Remove the oil filler pipe.
-
NOTE: Note the orientation of the component prior to removal.

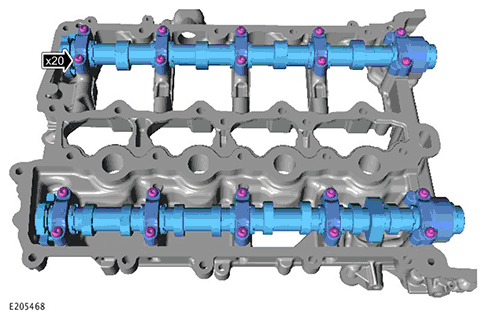

- Release the 20 camshaft bearing cap bolts evenly 1 turn at a time.
- Remove the camshafts.
- Inspect the components and renew if damaged or worn.
