Camshaft Carrier (G2172631): Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: This step is only required if previously removed.

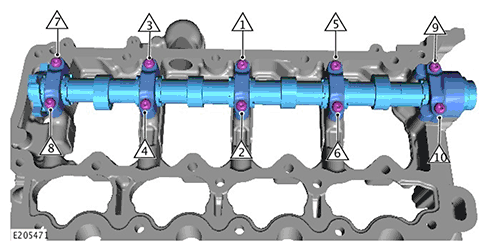

    G11717650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the inlet camshaft.
    • Install the camshaft bearing caps into the previously noted position. Lubricate the camshaft and the camshaft bearing caps with a small quantity of clean engine oil.
    • Tighten the 10 camshaft bearing cap bolts following the tightening sequence as illustrated.

      Torque  : 11 Nm

  2. NOTE: This step is only required if previously removed.

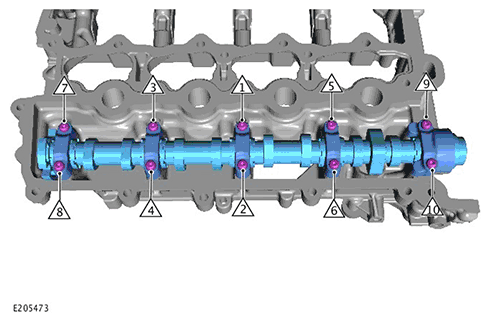

    G11717926Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the exhaust camshaft.
    • Install the camshaft bearing caps into the previously noted position. Lubricate the camshaft and the camshaft bearing caps with a small quantity of clean engine oil.
    • Tighten the 10 camshaft bearing cap bolts following the tightening sequence as illustrated.

      Torque  : 11 Nm

  3. NOTE: This step is only required if previously removed.

    Install the oil filler pipe and tighten the retaining bolt to the correct torque. Make sure that a new O-ring seal is installed.

    Renew Part: Oil fill pipe O-ring seal Quantity: 1 .

    Torque  : 12 Nm

  4. NOTE: This step is only required if previously removed.

    Install the Camshaft Position (CMP) sensors.

    Torque  : 8 Nm

  5. Install a new camshaft carrier gasket.

    Renew Part: Camshaft carrier gasket Quantity: 1 .

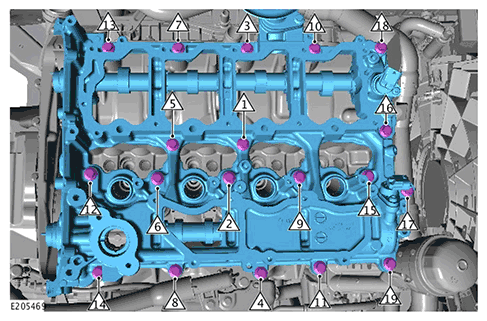

  6. G11717652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the valve cover.
    • Install and tighten the bolts in the sequence illustrated to the joining torque figure.

      Torque  : 10 Nm

    • Tighten the bolts in the sequence illustrated to the final torque figure.

      Torque  : 28 Nm

  7. Install the coolant bypass hose into the correct position. Tighten the 2 retaining nuts to the correct torque.

    Torque  : 8 Nm

  8. Install the 2 engine cover support mounts and tighten to the correct torque.

    Torque  : 6 Nm

  9. Install the fuel injection pump and tighten the 2 bolts to the correct torque.

    Torque  : 12 Nm

    • Install the wiring harness into the correct position.
    • Install the 2 retaining bolts and tighten to the correct torque.

      Torque  : 6 Nm

    • Connect the 8 electrical connectors.
  11. Install the high pressure fuel pump.

    Refer to: HIGH PRESSURE FUEL PUMP (G2043272) .

  12. Install the accessory drive belt.

    Refer to: ACCESSORY DRIVE BELT .

  13. Install the evaporative emission canister purge valve.

    Refer to: EVAPORATIVE EMISSION CANISTER PURGE VALVE .

  14. Install the oil separator and crankcase vent assembly.

    Refer to: VALVE COVER VENT OIL SEPARATOR .

    Refer to: VALVE COVER VENT OIL SEPARATOR .

  15. Install the fuel injectors.

    Refer to: FUEL INJECTORS .

  16. Install the Continuous Variable Valve Lift (CVVL) assembly.

    Refer to: CONTINUOUS VARIABLE VALVE LIFT .

  17. Install the upper timing chain.

    Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS .

  18. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
