Right Engine Mount (G2523496): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Remove the cowl panel.
Refer to: COWL PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

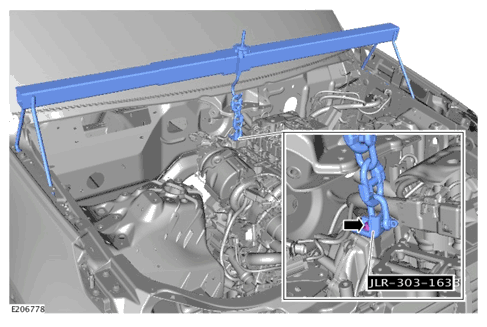

- Install the special tool 303-021 as illustrated.
  Special Tool(s): 303-021
- Install the engine lifting bracket.
  Special Tool(s): JLR-303-1633
- Install and tighten the bolt.
  Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

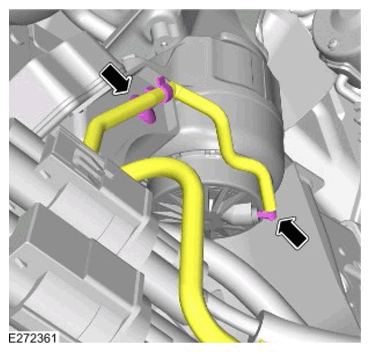

- Release the pipe from the clip.
- Disconnect the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

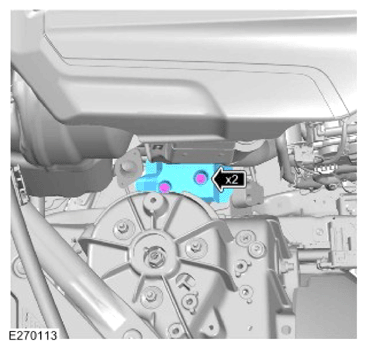

- Remove the 2 bolts.
- Remove the heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

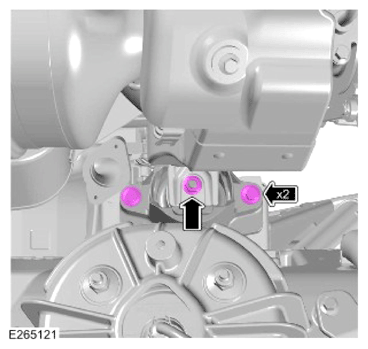

- Remove and discard the engine mount nut.
- Remove and discard the 2 engine mount bolts.
CAUTION: Care must be taken to avoid damaging the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

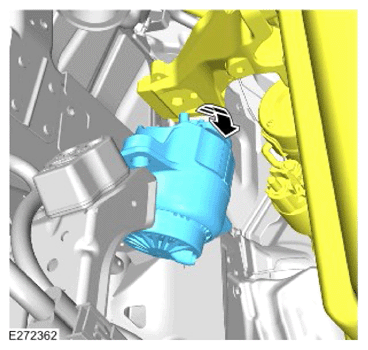

- Use the special tool 303-021 to lift the engine assembly 30 mm.
- Remove the engine mount.
