Oil Pan (G2523503): Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE:
    • Make sure that all traces of the old sealant are removed from the mating faces.
    • Apply silicone gasket sealant or equivalent meeting Jaguar specification.

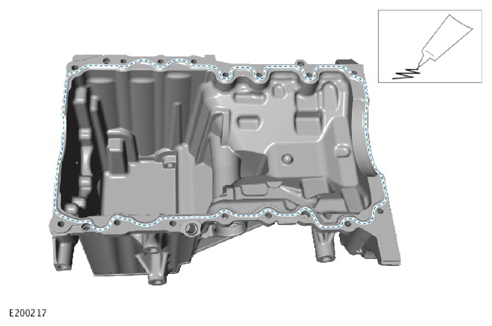

    G12004604Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply silicone gasket sealant or equivalent meeting Jaguar specification as illustrated.

    Refer to: SPECIFICATIONS .

  2. CAUTION: Install the bolts in the noted position.

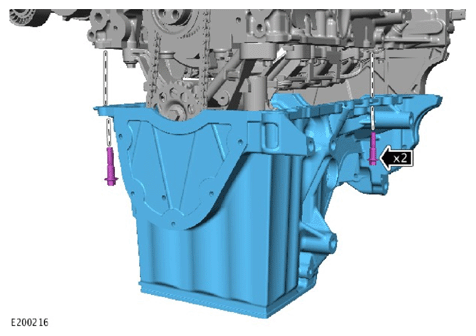

    G12004603Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the oil pan.
    • Partially install the 2 oil pan bolts finger tight to make sure the oil pan is fitted in the correct position.
  3. CAUTION: Install the bolts in the noted position.

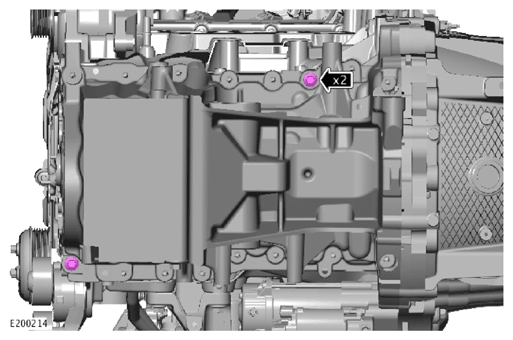

    G12004601Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Partially tighten the 2 fitted oil pan bolts.

    Torque  : 10 Nm

  4. CAUTION: Install the bolts in the noted position.

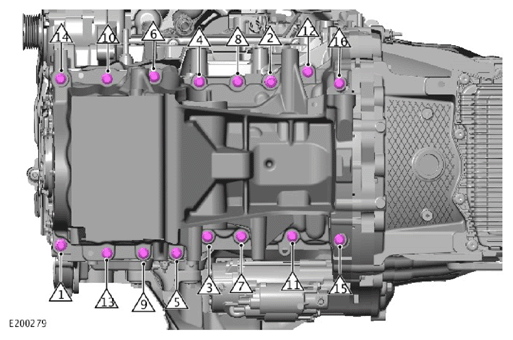

    Fig 1: Oil Pan Tightening Sequence
    G12004607Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the remaining bolts and tighten fully following the sequence illustrated.

    Torque  : 25 Nm

  5. CAUTION: Install the bolts in the noted position.

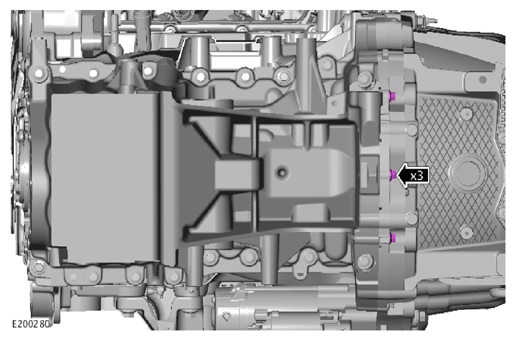

    G12004608Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the remaining 3 oil pan bolts and tighten to the correct torque.

    Torque  : 25 Nm

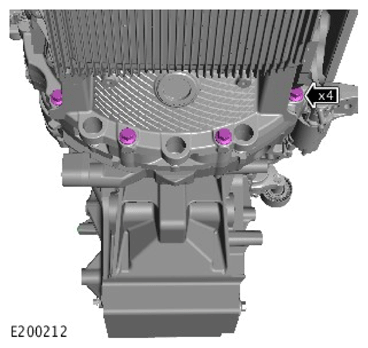

  6. G12004599Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 bolts securing the transmission assembly to the oil pan assembly.

    Torque  : 48 Nm

    • Install the NVH  pad.
    • Install the 4 clips securing the NVH  to the oil pan assembly.
    • Install the transmission fluid cooler tubes into the correct position.
    • Install and tighten the bolt securing the transmission tubes to the oil pan assembly.

      Torque  : 12 Nm

  9. CAUTION: Inspect the O-ring seal, install a new component if damaged.
    • Install the oil level gauge tube.
    • Install and tighten the bolt securing the oil level gauge in position.

      Torque  : 8 Nm

  10. CAUTION:
    • Inspect the front cover and replace if necessary.
    • Make sure that the surface of the front cover and the engine is clean and free of foreign material.
    • Steps 10-13 must be completed within 7 minutes of starting to apply the RTV.
    G14054862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply RTV sealant in the position shown.

    Refer to: SPECIFICATIONS .

  11. G14054863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the engine front cover.
    • Use the front cover alignment tool to align the front cover.

      Special Tool(s): JLR-303-1672

  12. CAUTION: Do not fully tighten the bolts at this stage.
    G14054864Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and finger tighten the 4 bolts.

  13. CAUTION: Continuous forward pressure must be applied on the tool.
    G14054865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 4 bolts in the sequence illustrated.

    Torque  : 12 Nm

  14. CAUTION: This step must be completed within 40 minutes of starting to apply the RTV.
    G14054866Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 8 bolts.

    Torque  : 12 Nm

  15. G14054867Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front cover alignment tool.

    Special Tool(s): JLR-303-1672

  16. CAUTION: This step is only required if the front cover is re-used.
    G14054868Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1628

    • Rotate the special tool and the crankshaft front seal 35° in a counter clockwise direction.
    • Remove the special tool and the crankshaft front seal.
    • Remove and discard the crankshaft front seal.
  17. CAUTION: This step is only required if the front cover is re-used.
    G14054869Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new crankshaft front seal to the special tool.

      Special Tool(s): JLR-303-1628

      Renew Part: Crankshaft front oil seal Quantity: 1 .

    • Install the special tool and the crankshaft front seal.
    • Rotate the crankshaft front seal and special tool 35° in a clockwise direction.
    • Remove the special tool.
  18. Install the 2 timing belt idler pulleys.

    Torque  : 25 Nm

    • Install the A/C  compressor into the correct position.
    • Install and tighten the 3 nuts securing the A/C  compressor in position.

      Torque  : 25 Nm

    • Install the front drive halfshaft support bracket into the correct position.
    • Install and tighten the 3 bolts securing the front drive halfshaft support bracket in position.

      Torque  : 25 Nm

  21. Install the crankshaft damper.

    Refer to: the appropriate service information

  22. Install the front final drive differential case.

    Refer to: DIFFERENTIAL .

  23. Refill the engine with oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .

  24. Lower the vehicle.
  25. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
