Left Engine Mount (G2523495): Installation

WARNING: This page is about a different variant/trim than selected.

The following step(s) applies to:

All vehicles

- Connect the vacuum hose to the engine mount.
- Install the engine mount.
- Install and tighten the 2 bolts.
  Torque : 47.5 Nm

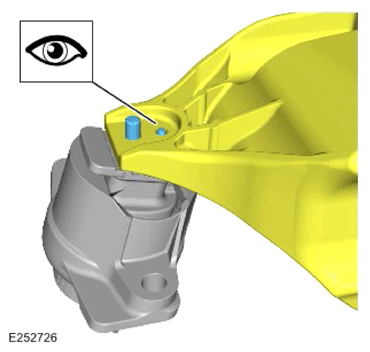

CAUTION: Make sure the engine mount guide pin in the correct position on both side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool 303-021 to lower the engine until the engine bracket rests on the engine mounts.
Install and tighten the engine mount retaining nut.
Torque : 60 Nm
Remove the engine support bracket.
Special Tool(s): 303-021
- Remove the bolt.
- Remove the engine lifting bracket.
  Special Tool(s): JLR-303-1633
Install the cowl panel.
Refer to: COWL PANEL .
Install the charge air cooler outlet pipe.
Refer to: CHARGE AIR COOLER OUTLET PIPE .
Install the intake air resonator.
Refer to the appropriate service information.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD .

The following step(s) applies to:

Plug in hybrid electric vehicles only
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power up the HV system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV Safety Rules.

Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER .
