Intake Manifold (G2029661): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING

General Equipment: 2 post lift
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G2152755)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

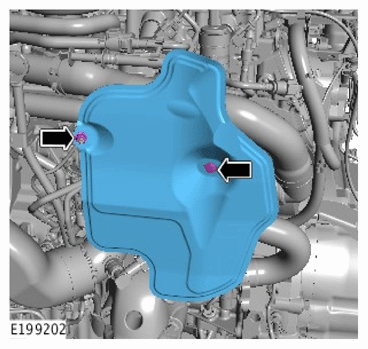

Remove the engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front Noise, Vibration and Harshness (NVH) material.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

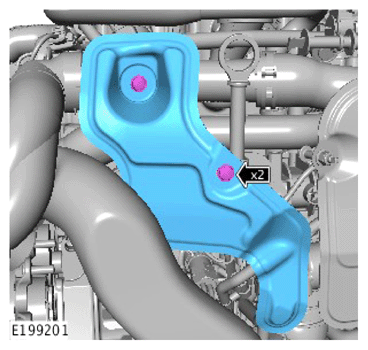

Remove the NVH material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the upper coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

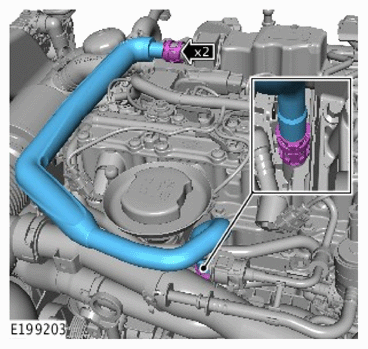

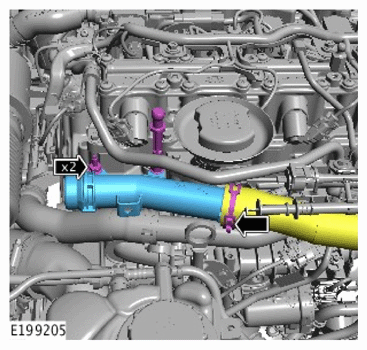

Remove the upper coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

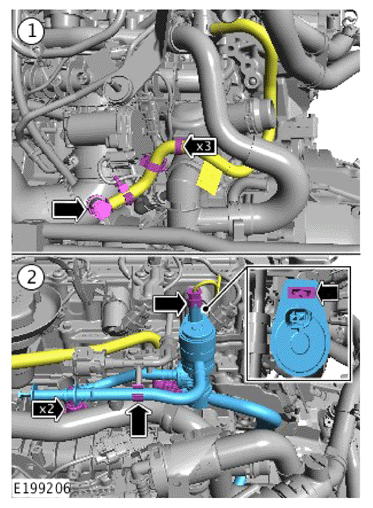

Remove the purge valve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

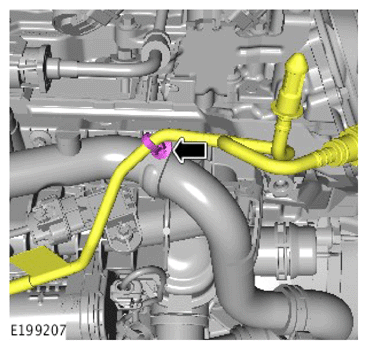

Release the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

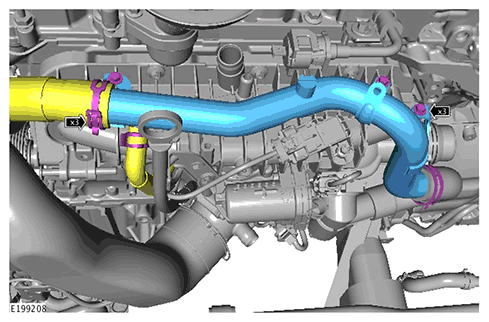

Remove the lower coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

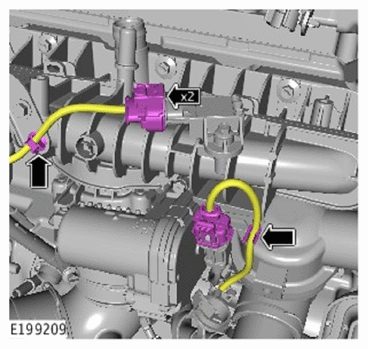

Disconnect and release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

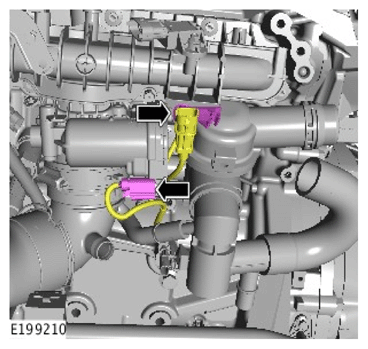

Disconnect and release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

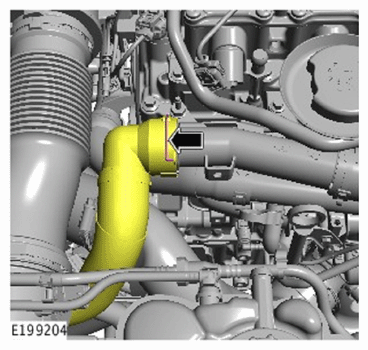

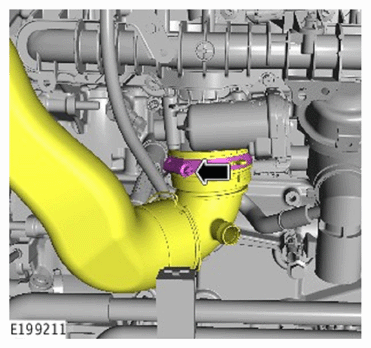

Disconnect the charge air pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

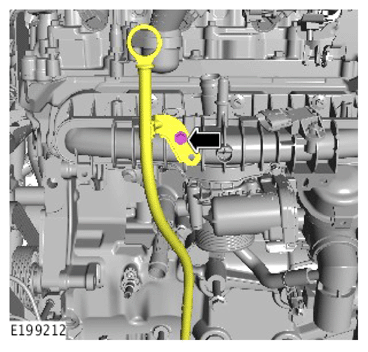

Disconnect the oil level gauge from the intake manifold assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

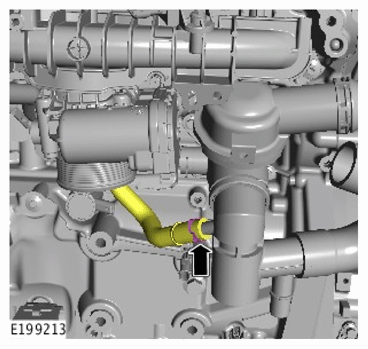

Disconnect the coolant hose from the thermostat assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

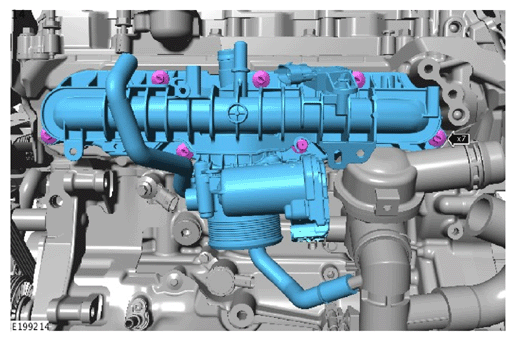

Release the 7 bolts and then remove the intake manifold.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

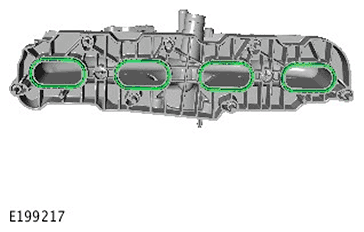

Remove and discard the intake manifold gaskets.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

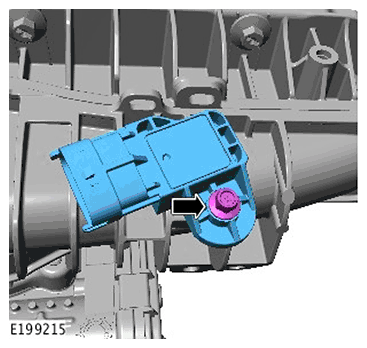

Remove the manifold absolute pressure sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the throttle body. Discard the seal.
