Crankshaft Rear Seal (G2523493): Installation

WARNING: This page is about a different variant/trim than selected.

The following step(s) applies to:

All vehicles

CAUTION: Make sure that the area around the component is clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

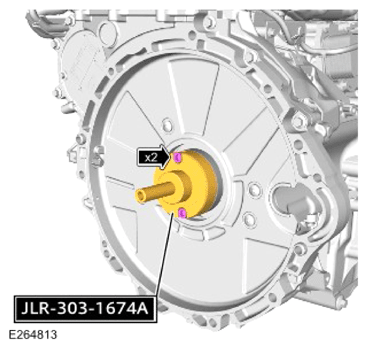

- Install the special tool to the end of the crankshaft.
  Special Tool(s): JLR-303-1674A
- Install and hand-tighten the 2 bolts.
CAUTION:
- Make sure a new seal is installed.
- If the seal is removed from the spacer provided, a new seal must be installed.
- Make sure that the area around the component is clean and free of foreign material.

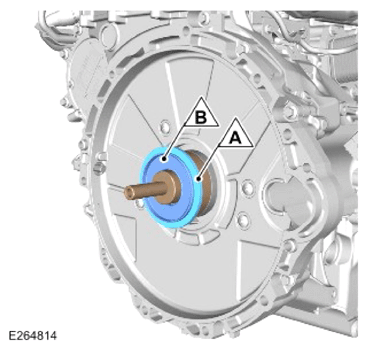

NOTE: The component labeled B in the illustration is a alignment spacer provided with a new seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Position the new crankshaft oil seal (A) and spacer (B) over special tool JLR-303-1674A. Carefully slide the crankshaft oil seal (A) over the end of the crankshaft and discard the spacer (B).

Special Tool(s): JLR-303-1674A

Renew Part: Crankshaft rear seal Quantity: 1 .
CAUTION: Make sure the seal is installed correctly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

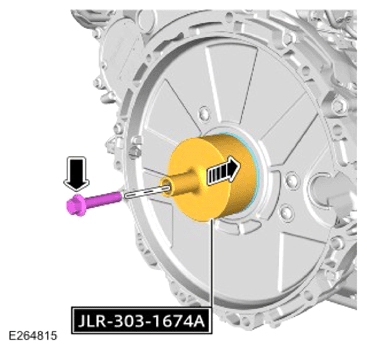

- Install the second part of special tool JLR-303-1674A to position the crankshaft oil seal correctly.
  Special Tool(s): JLR-303-1674A
- Tighten the bolt until the seal is fully installed and the bolt stops turning.
- Remove the special tools.
Install the drive plate.
Refer to: DRIVE PLATE .
Connect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

The following step(s) applies to:

Plug in hybrid electric vehicles only
Install the dual mass flywheel.
Refer to: DUAL MASS FLYWHEEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Up the HV system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV Safety Rules.

Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER .
