Engine Oil Vacuum Draining And Filling (G1997675): Filling

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Before installing the oil filter element and cap, check the bypass valve (A) is installed and correctly attached to the locating tabs (B).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new O-ring seal.
  Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
- Lubricate the oil filter O-ring seal (A) with clean oil and install the oil filter element into the cap. Make sure the oil filter element is pushed correctly on to the bypass valve inside the oil filter element cap (B).
  Refer to: SPECIFICATIONS .

  Renew Part: Oil filter Quantity: 1 .
Install and tighten the oil filter element cap.
Torque : 28 Nm
Fill the engine with the recommended oil to the correct level.
Refer to: SPECIFICATIONS .
Install the oil filler cap.
CAUTION: Make sure that the component is correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

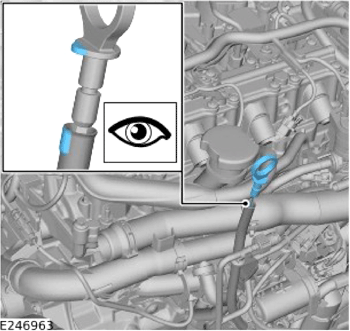

Check the engine oil level.
- Start the engine and allow to idle for 2 minutes.
- Check for leaks.
- Stop the engine.
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV .
